Description
Engine Model: Yanmar 4TNV94L | Dimensions: 5943×2000×2619 mm | Power: 36,2 kW | Rated load: xxx kg | Operating weight: 5820 kg
| Specification | Data |
|---|---|
| Model | Yanmar 4TNV94L |
| Type | Direct injection, 4 stroke, water cooled, natural intake |
| No. of cylinder | 4 |
| Displacement (L) | 3,054 |
| Power output (kW/rpm) | 36.2/2100 |
| Max. torque (N.m/rpm) | 193.2～210.6/1260±100 |
| Travel motors | KYB, Japan |

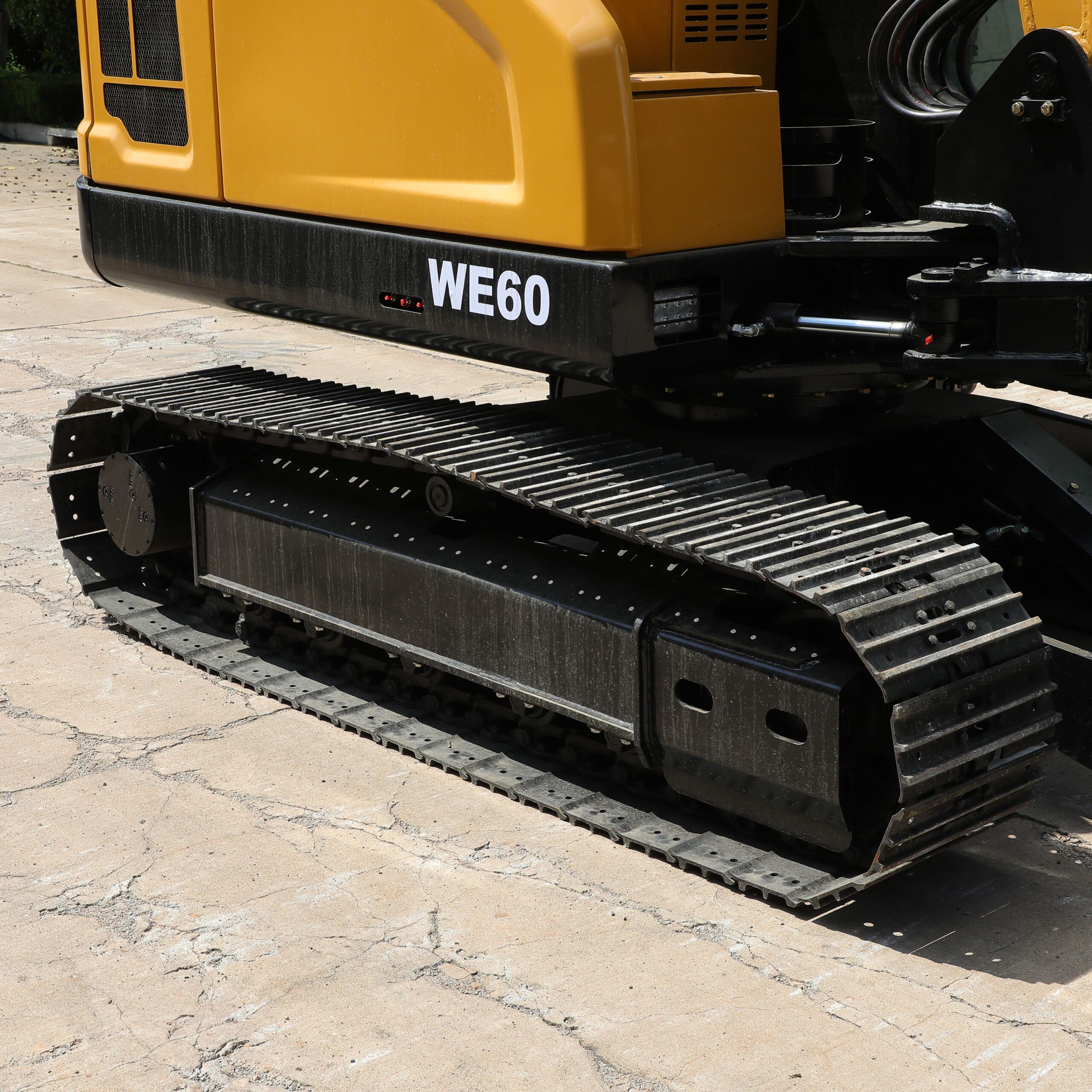

| Support roller quantities | 2×5 |
| Carrier roller quantities | 2×1 |
| Travel shoes | 2×37 |
| Travel speed (Km/h) | 2.5/4.0 |
| Drawbar pulling force (kN) | 50,4 |
| Gradeability (%) | 70 (30°) |
| Track shoes thickness (mm) | 6 |
| Pump | KYB, Japan |
| Type | axial piston pump+ gear pump |
| Max. discharge flow (L/min) | 160 |
| Boom, arm and bucket (MPa) | 21 |
| Travel circuit (MPa) | 12 |
| Swing circuit (MPa) | 9 |
| Control circuit (MPa) | 3,9 |
| Pilot control pump | Gear type |
| Main control valves | Hydro Control |
| Oil cooler | Air cooled type |
| Cab | Installed with silicon oil rubber, adjustable luxurious seat, cold and warm air-conditioning system plus flexible pilot control system |
| Voltage (V) | 12 |
| Batteries (V) | 1×12 |
| Battery capacity (Ah) | 80 |
| Boom cylinder | Φ110×Φ65×S720-L1095 |
| Arm cylinder | Φ85×Φ55×S880-L1280 |
| Bucket cylinder | Φ80×Φ50×S600-L925 |
| Swing motor | KYB, Japan |
| Swing motor type | Axial-piston motor |
| Brake | Hydraulic oil released |
| Parking brake | Hydraulic disc brake |
| Swing speed (r/min) | 10 |
