Description

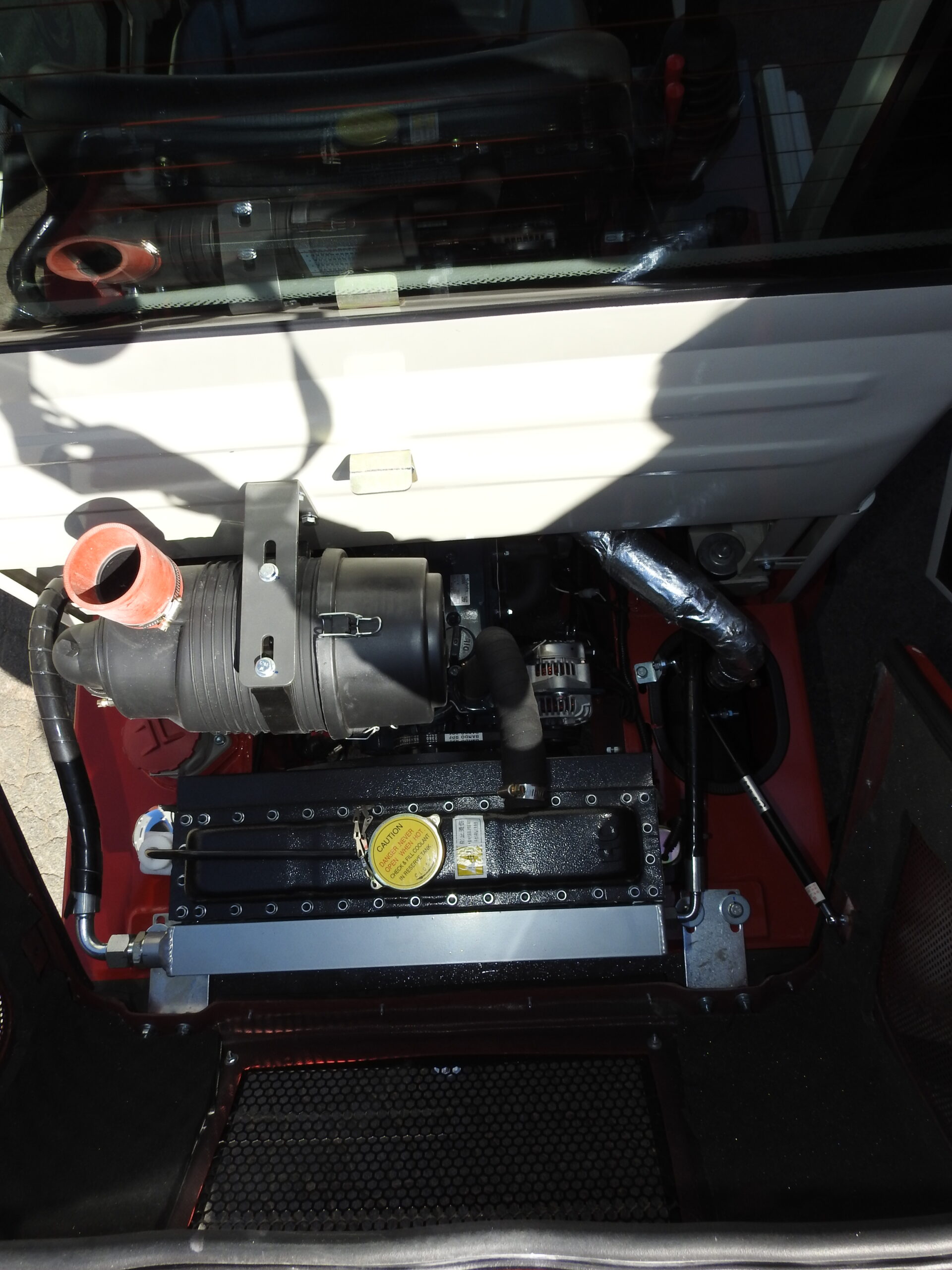

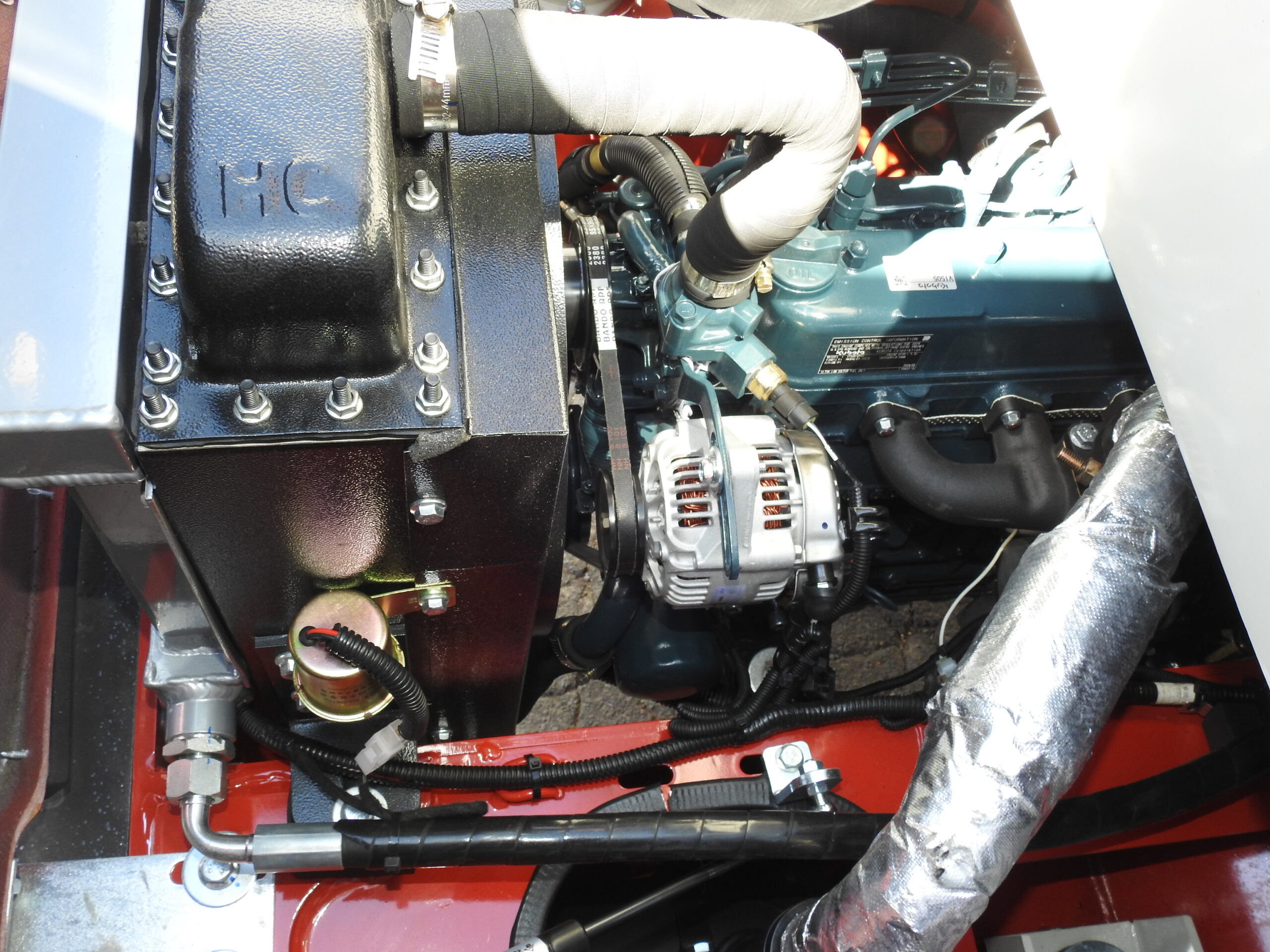

Engine Model: KUBOTA V1505 E5/EPA | Dimensions: 4537×1520×2279 mm | Power: 18,2 kW | Rated load: 1000 kg | Operating weight: 2500 kg

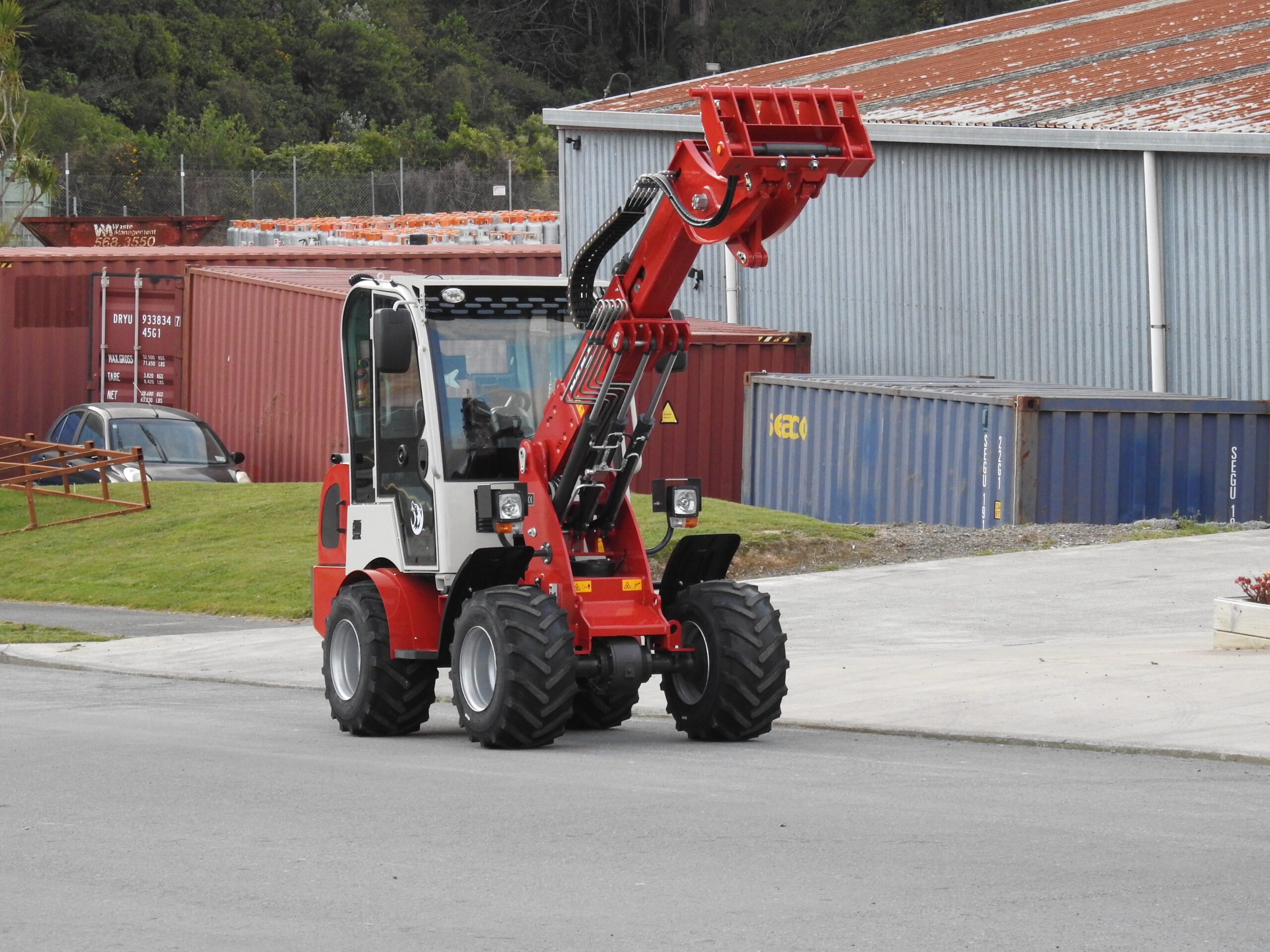

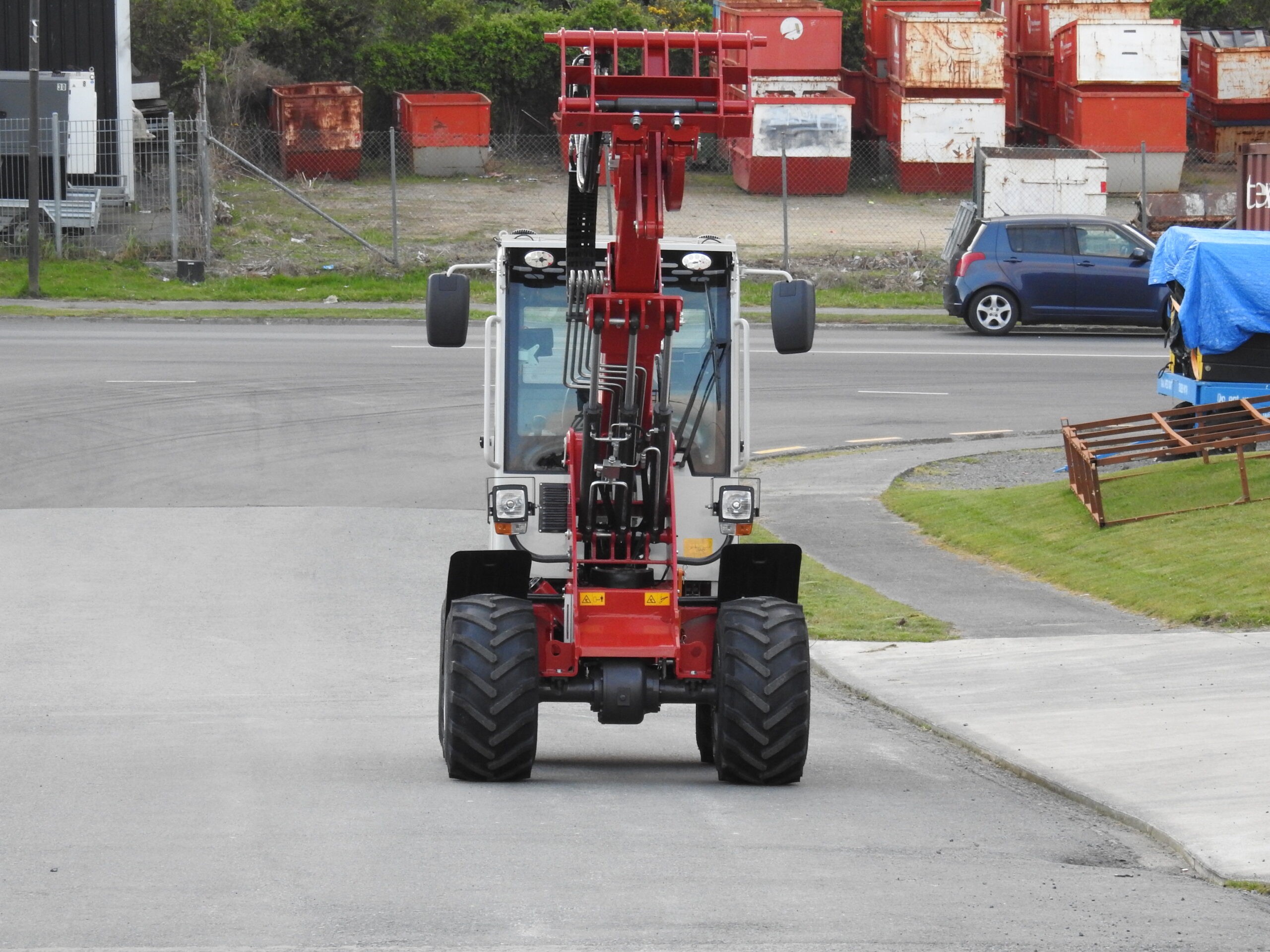

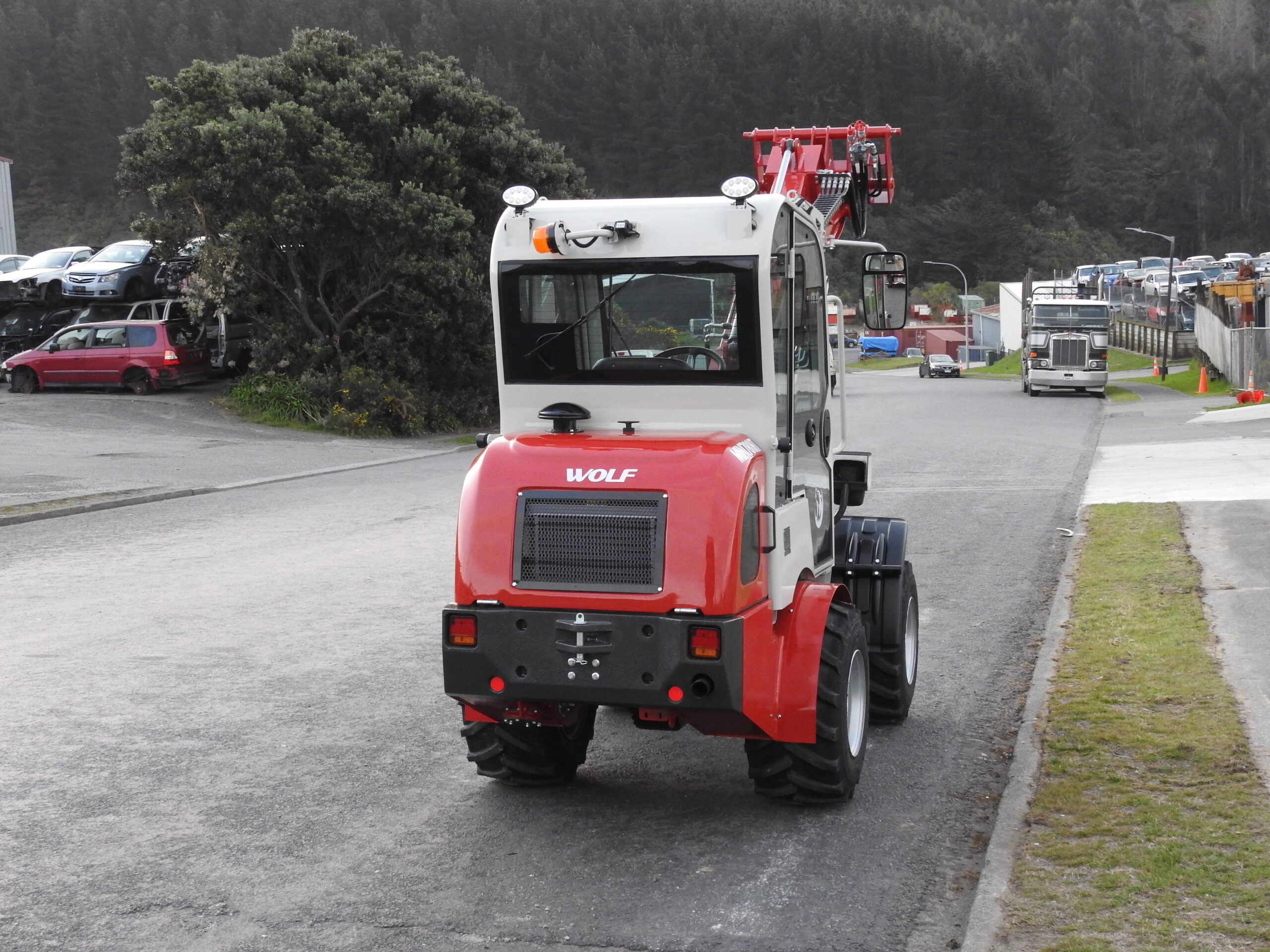

The WOLF Mini780HT is a telescopic loader built on the Mini780H platform, powered by a Kubota engine that meets both Euro 5 and EPA Tier 4 emission standards. Featuring a PWG hydrostatic drive system, it delivers smooth and enjoyable operation.
Standard Features:

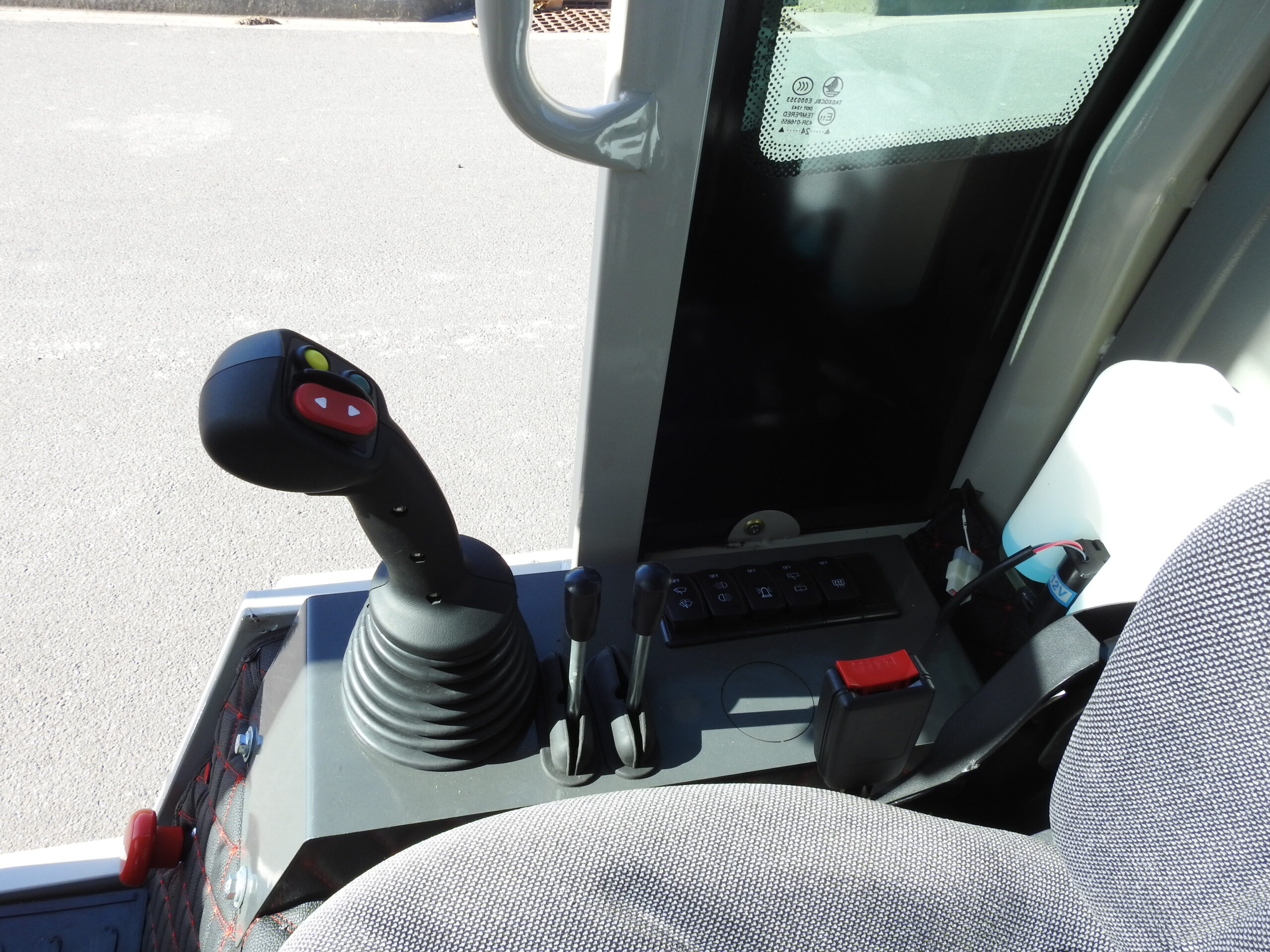

- Electric joystick
- Rearview camera
- Hydraulic quick hitch
| Specification | Data |
|---|---|
| Engine Model | KUBOTA V1505 E5/EPA |
| Rated Power (kW) | 18,2 |
| Rated Speed (rpm) | 2300 |
| Rated load (kg) | 1000 |
| Max Lifting Capacity (kg) | 1200 |
| Rated Bucket Capacity (m³) | 0.3–0.4 |

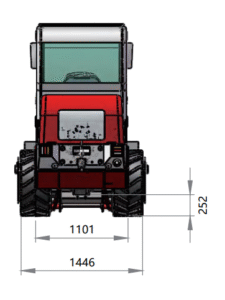

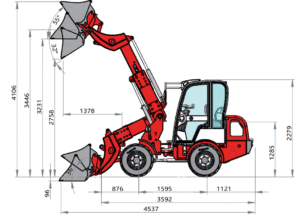

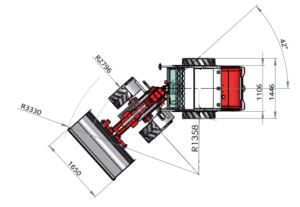

| Dimensions L×W×H (mm) | 4537×1520×2279 |
| Wheel base (mm) | 1595 |
| Wheel thread (mm) | 1175 |
| Max. breakout force (kN) | 50 |
| Max. dump height (mm) | 2758 |
| Dump distance (mm) | 1378 |
| Total time (s) | 7,3 |
| Operating Weight (kg) | 2500 |
| Tyre | 31×15.5-15 |
certificate
https://www.2material.com/wp-content/uploads/2025/06/CE.pdf
catalog
https://www.2material.com/wp-content/uploads/2025/06/WOLF-Catalog-2025-New-1_compressed.pdf
