Description
Engine Model: Changchai ZN390Q | Dimensions: 4827×1520×2434 mm | Power: 25 kW | Rated load: 1000 kg | Operating weight: 2800 kg

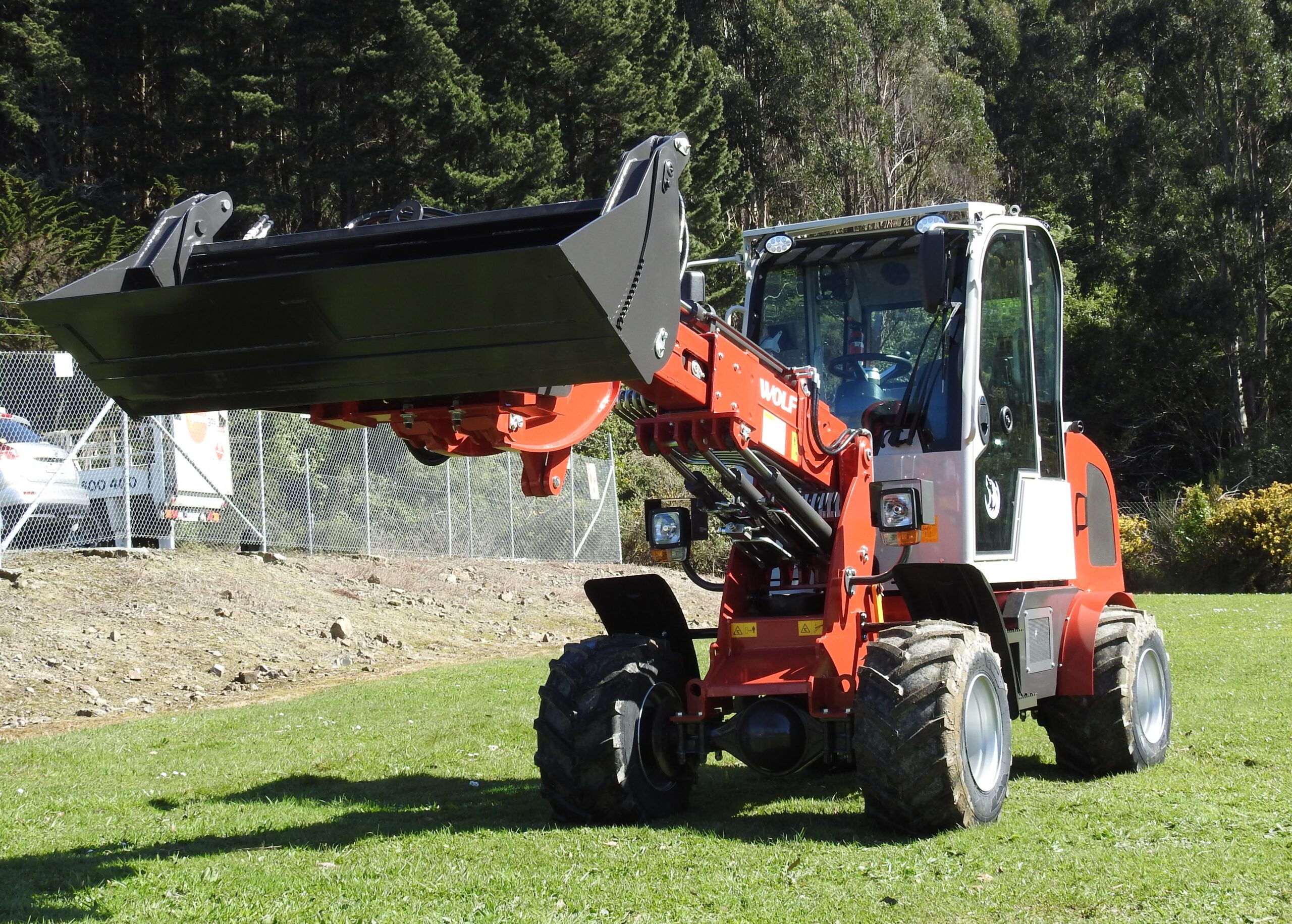

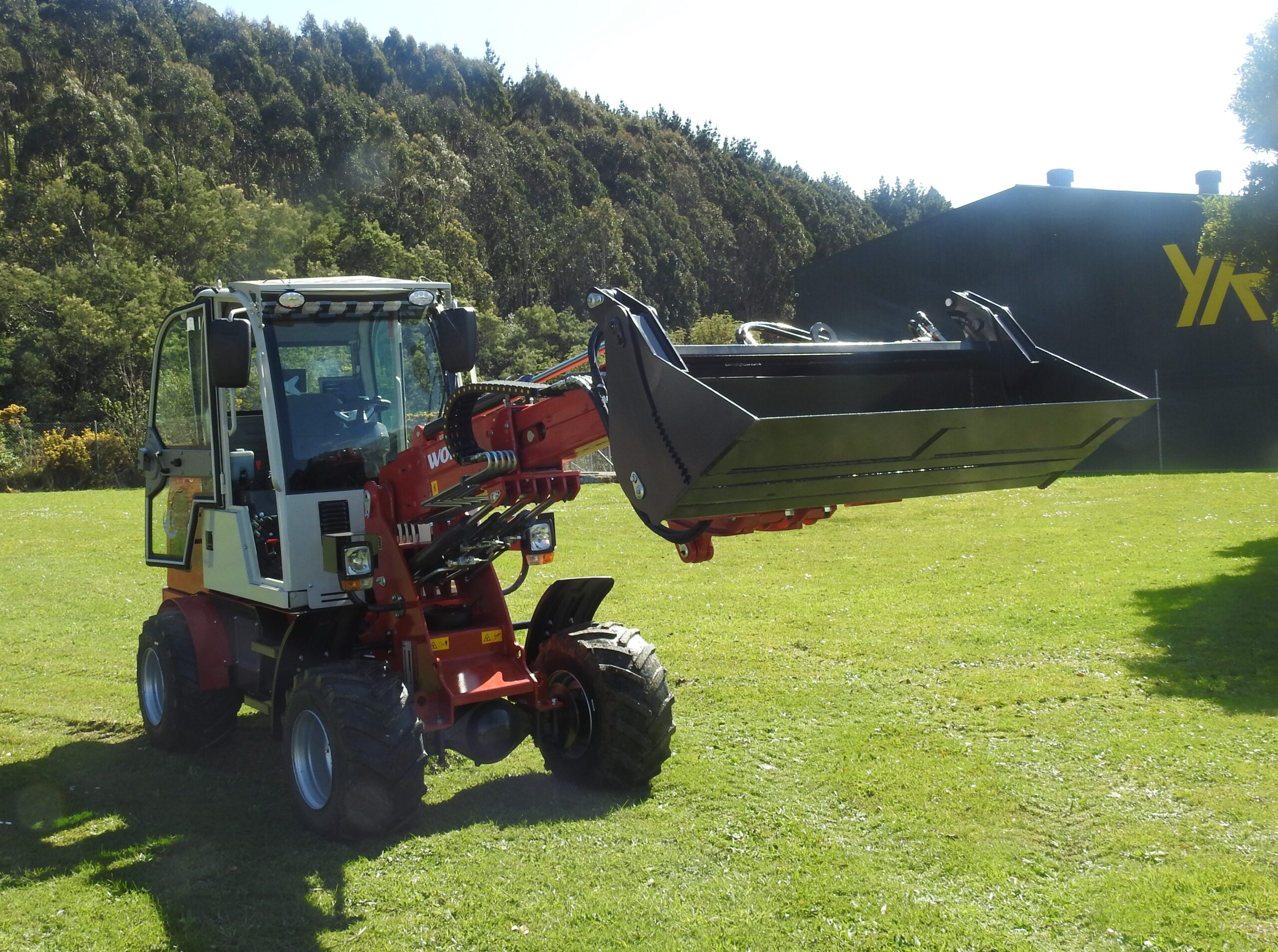

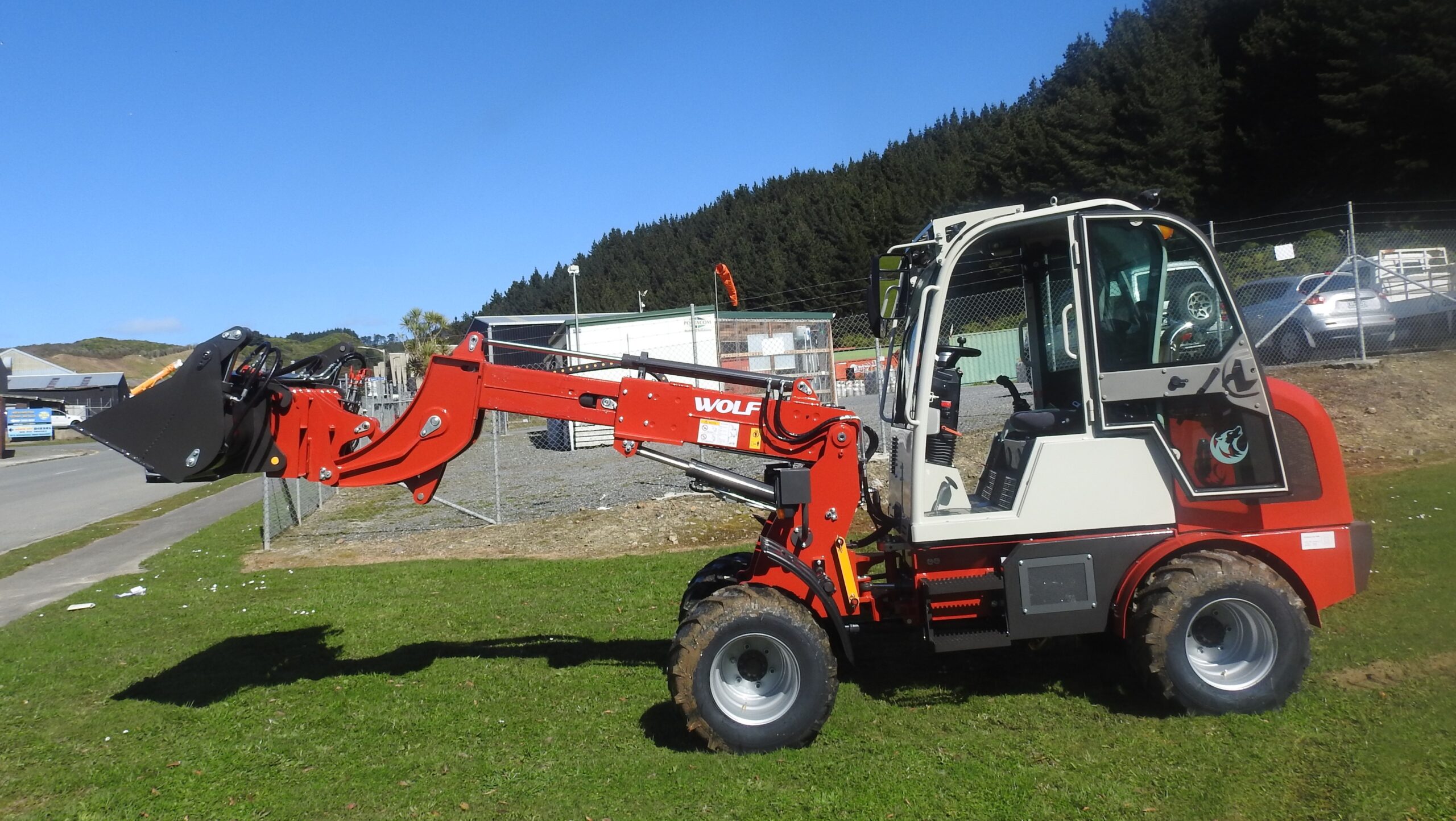

The WOLF Mini780TT is a telescopic loader developed from the Mini780T, offering increased lifting height and extended dumping reach. It’s a versatile machine, ideal for construction sites, farming, gardening, and landscaping tasks.
Key Features:
- Full lighting system (including work lights)
- Modern cabin with heating, blower, and front windscreen wiper
- Spring-loaded seat and adjustable steering wheel

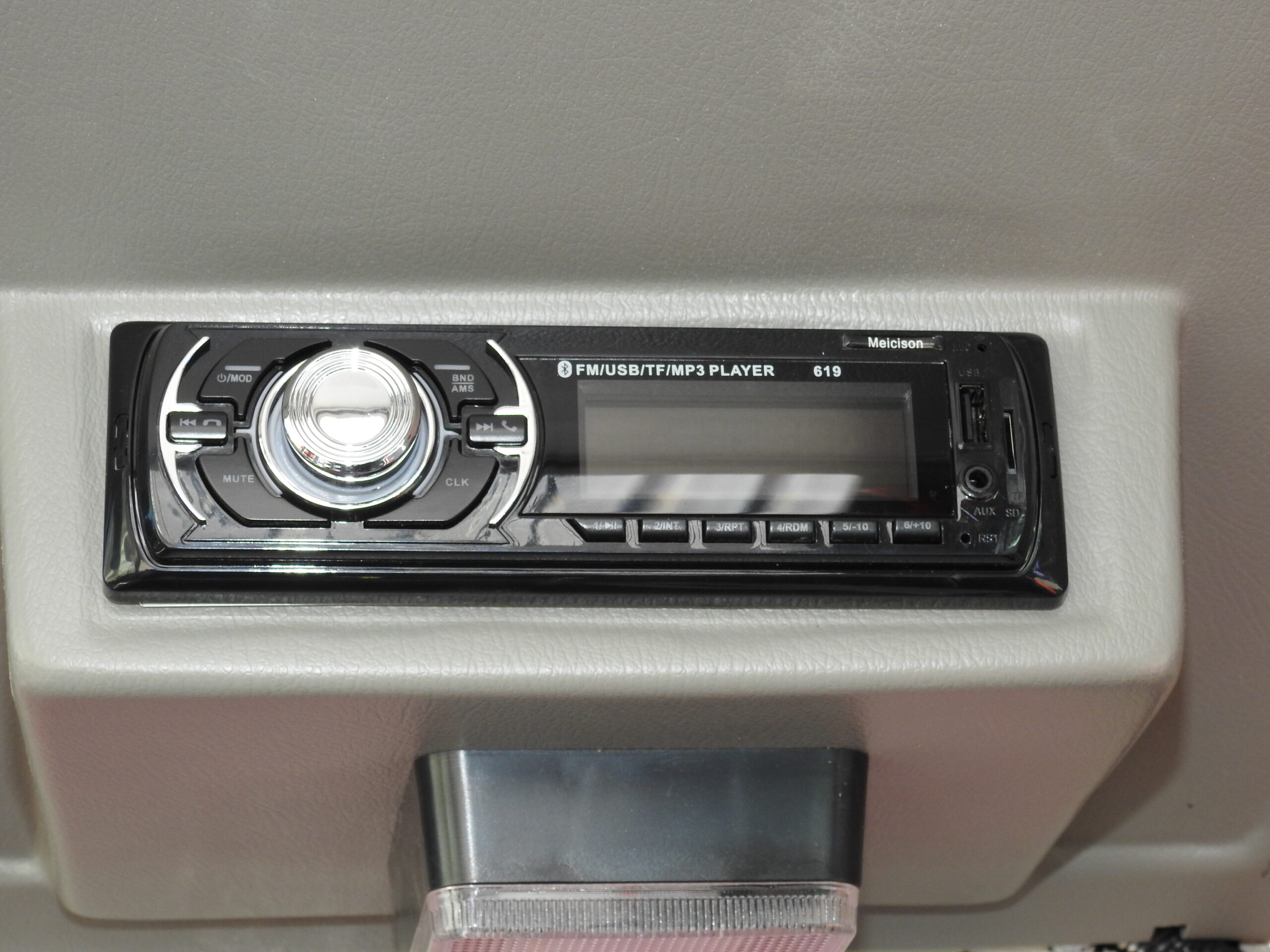

- Built-in radio for operator comfort

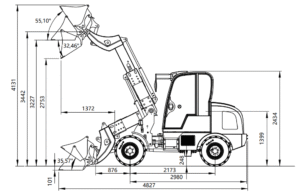

| Specification | Data |
|---|---|
| Engine Model | Changchai390 |
| Rated Power (kW) | 25 |
| Rated Speed (rpm) | 2400 |
| Rated load (kg) | 1000 |
| Max Lifting Capacity (kg) | 1200 |
| Rated Bucket Capacity (m³) | 0.3–0.5 |
| Dimensions L×W×H (mm) | 4827×1520×2434 |
| Wheel base (mm) | 2173 |
| Wheel thread (mm) | 1175 |
| Max. breakout force (kN) | 32 |
| Max. dump height (mm) | 2753 |
| Dump distance (mm) | 1372 |
| Total time (s) | 8 |
| Operating Weight (kg) | 2800 |
| Tyre | 825-16 / 10-16.5 / 29×12.5-15 / 31×15.5-15 |
certificate
https://www.2material.com/wp-content/uploads/2025/06/CE.pdf
catalog
https://www.2material.com/wp-content/uploads/2025/06/WOLF-Catalog-2025-New-1_compressed.pdf
