Description
Engine Model: KUBOTA V1505 | Dimensions: 4036×1446×2260 mm | Power: 18,2 kW | Rated load: 1000 kg | Operating weight: 2500 kg

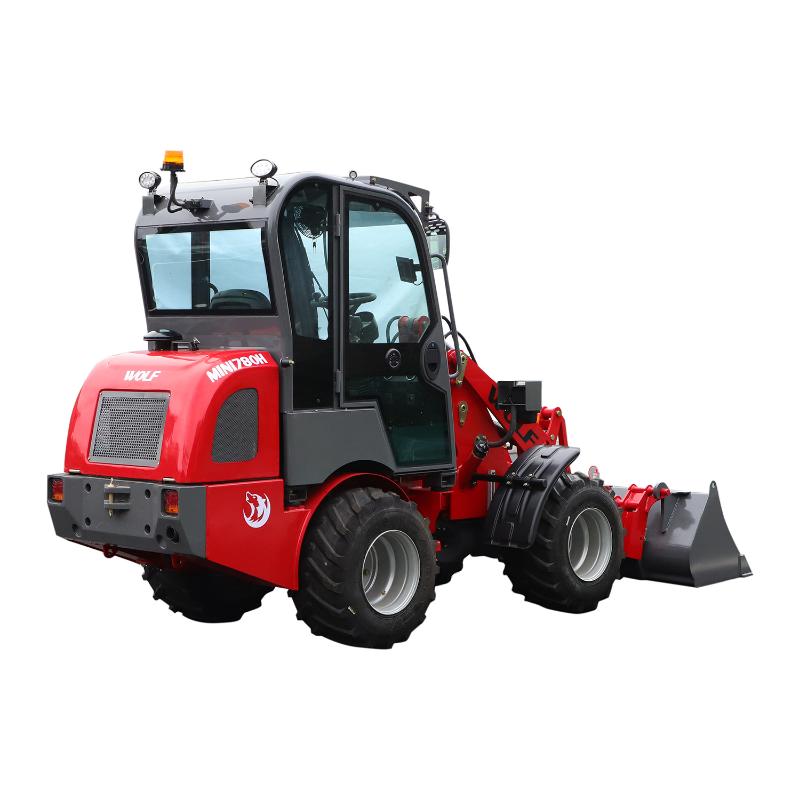

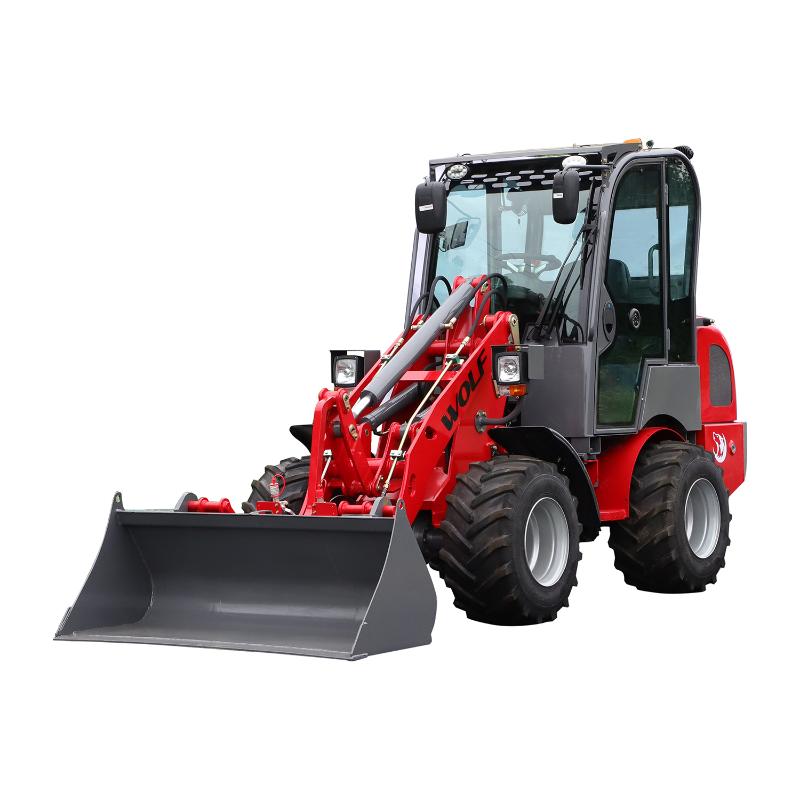

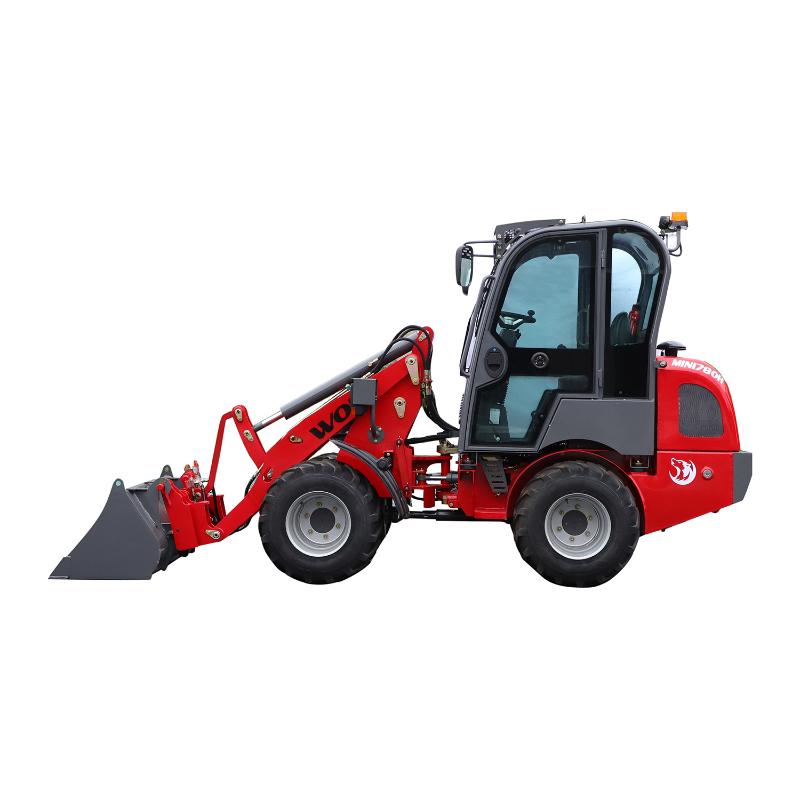

The Mini780H is a newly launched mini loader featuring a hydrostatic transmission that delivers high power in a compact design.
Key Features:
- Power & Performance:
- Kubota V1505 engine – Complies with Euro 5/EPA Tier 4 emission standards.
- Low noise levels during operation.
- Smart & Easy Control:

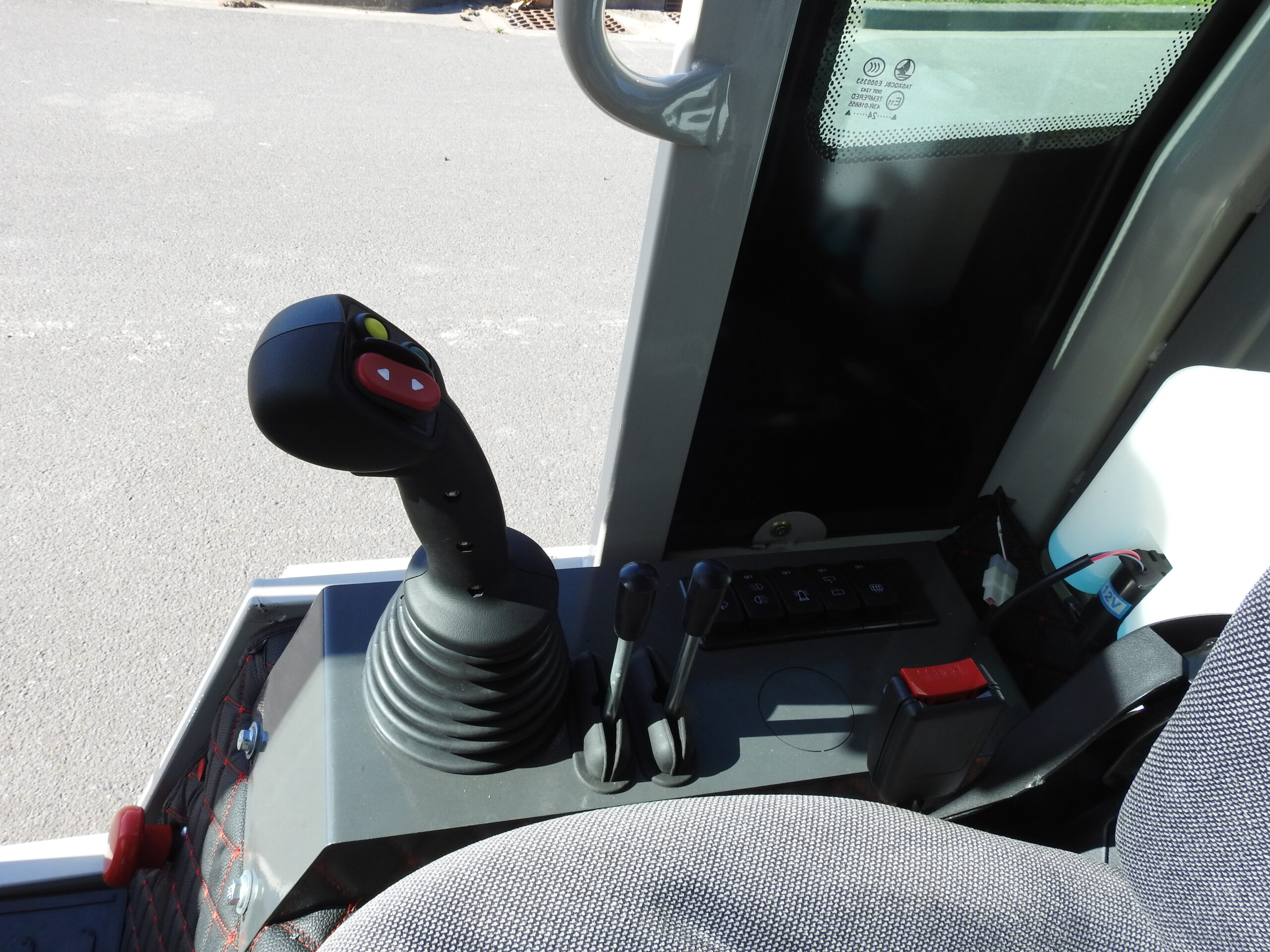

- Electric joystick for intuitive handling.
- XT linkage for automatic load leveling.
- Optional Upgrades:

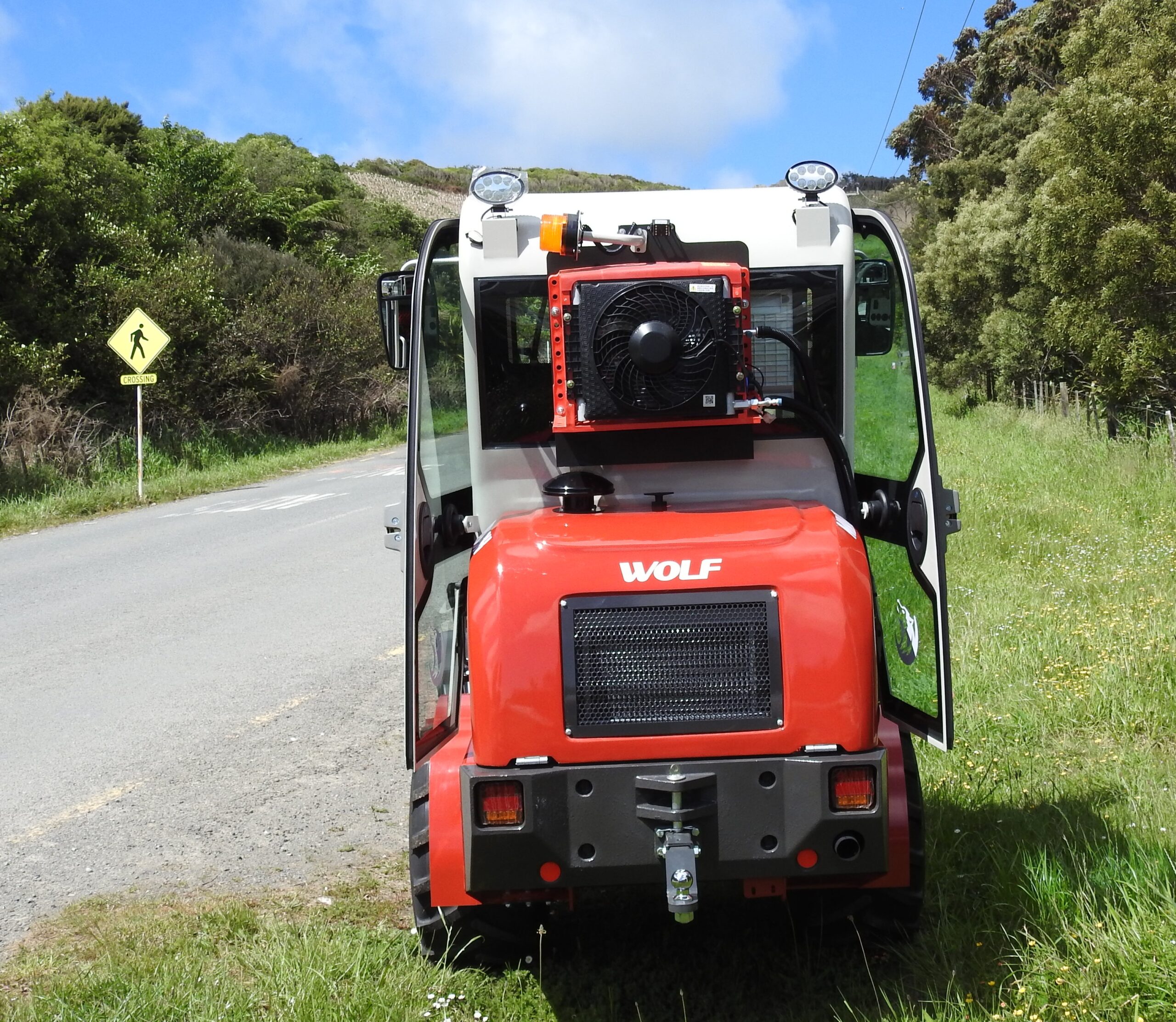

- Diesel cabin heater.
- 4-way hydraulic pipelines for additional attachments.
| Specification | Data |
|---|---|
| Engine Model | KUBOTA V1505 / EPA |
| Rated Power (kW) | 18,2 |
| Rated Speed (rpm) | 2300 |
| Rated load (kg) | 1000 |
| Max Lifting Capacity (kg) | 1200 |
| Rated Bucket Capacity (m³) | 0.3–0.4 |
| Dimensions L×W×H (mm) | 4036×1146×2260 |
| Wheel base (mm) | 1595 |
| Wheel thread (mm) | 1101 |
| Max. breakout force (kN) | 50 |
| Max. dump height (mm) | 1980 |
| Dump distance (mm) | 614 |
| Total time (s) | 7,3 |
| Operating Weight (kg) | 2500 |
| Tyre | 10-16.5 / 29×12.5-15 / 31×15.5-15 |
