Description
Engine Model: 3-EVF-200A | Dimensions: 3398×1210×2370 mm | Power: 14,4 kW | Rated load: 600 kg | Operating weight: 1 470 kg

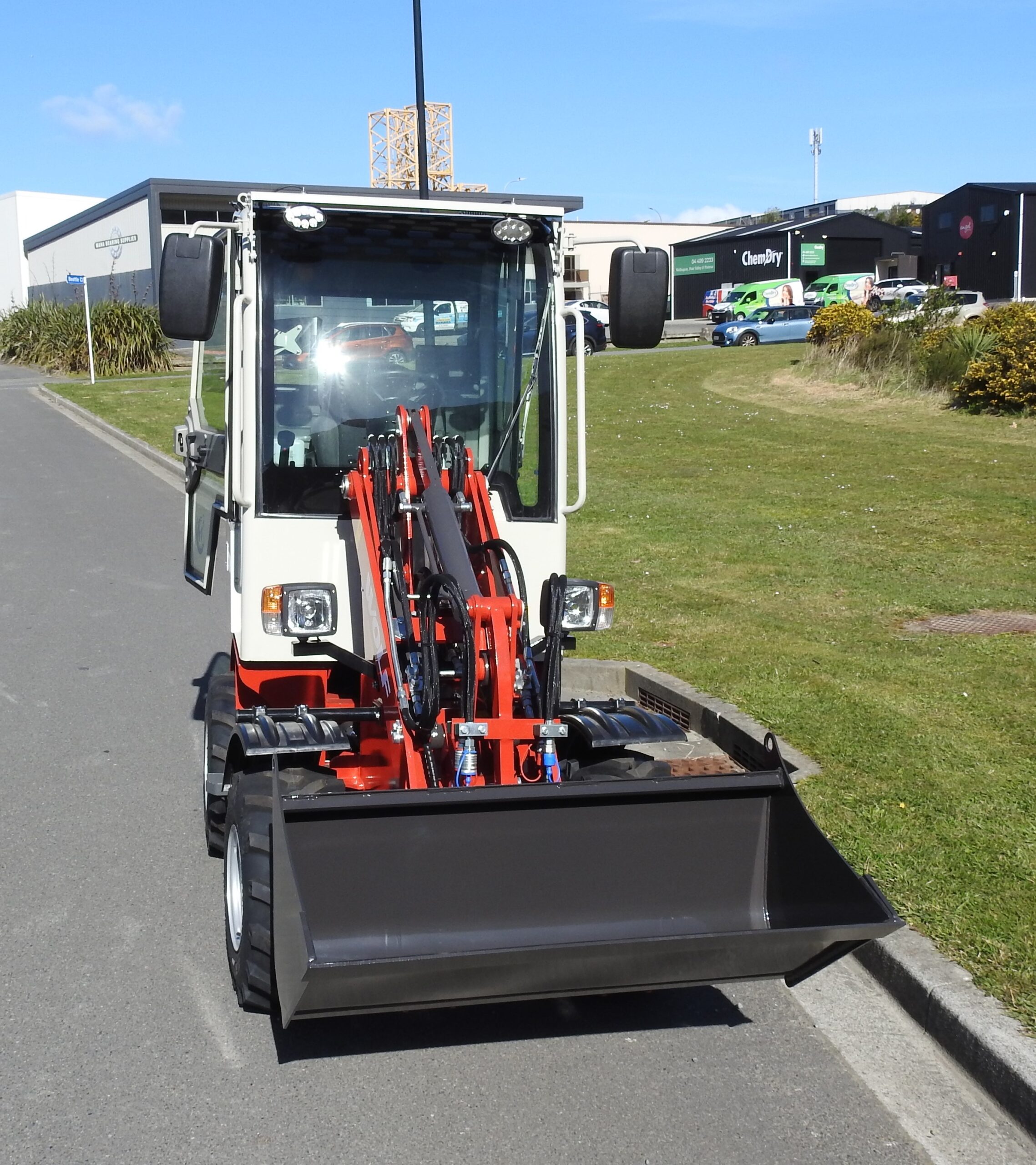

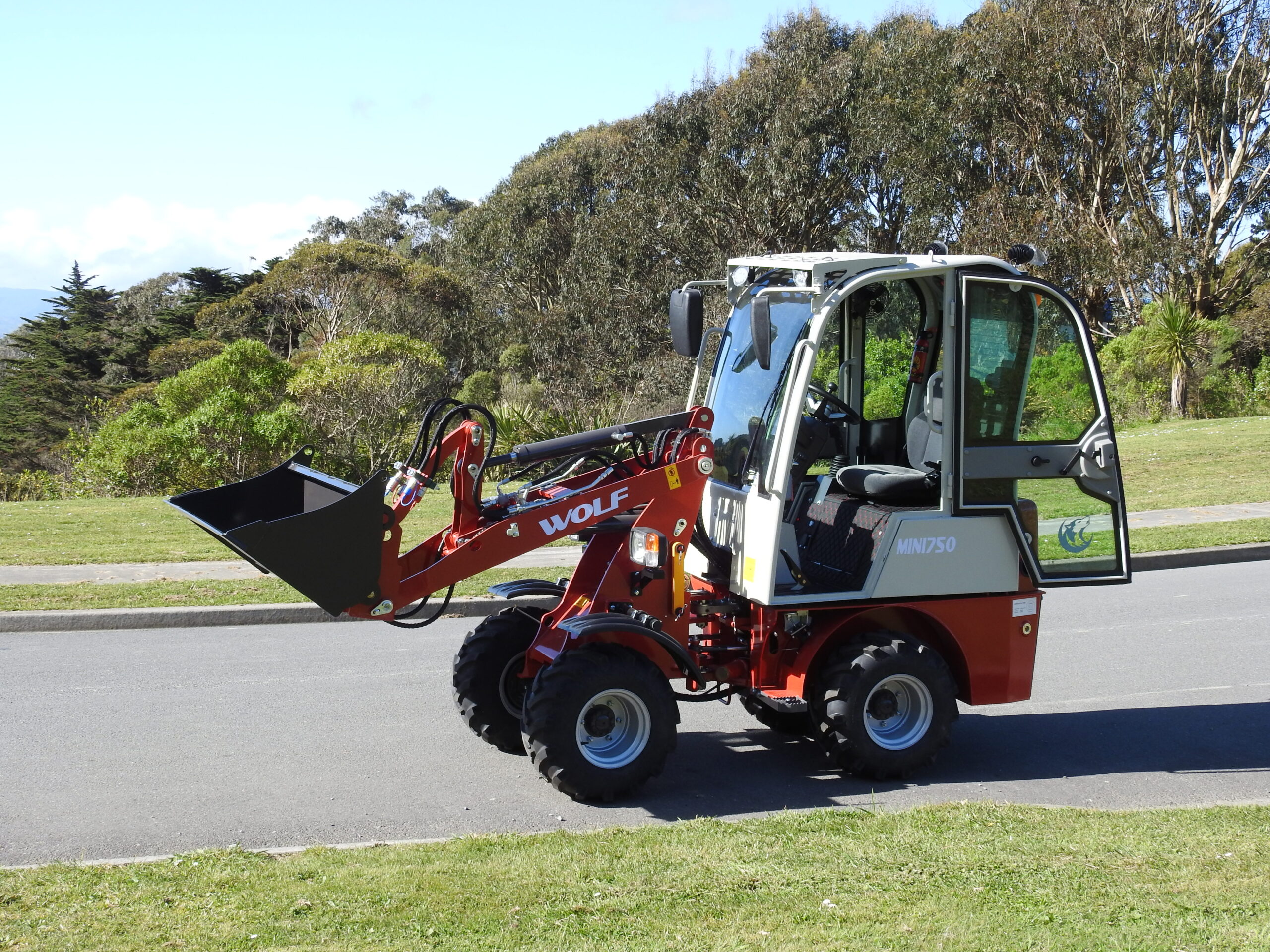

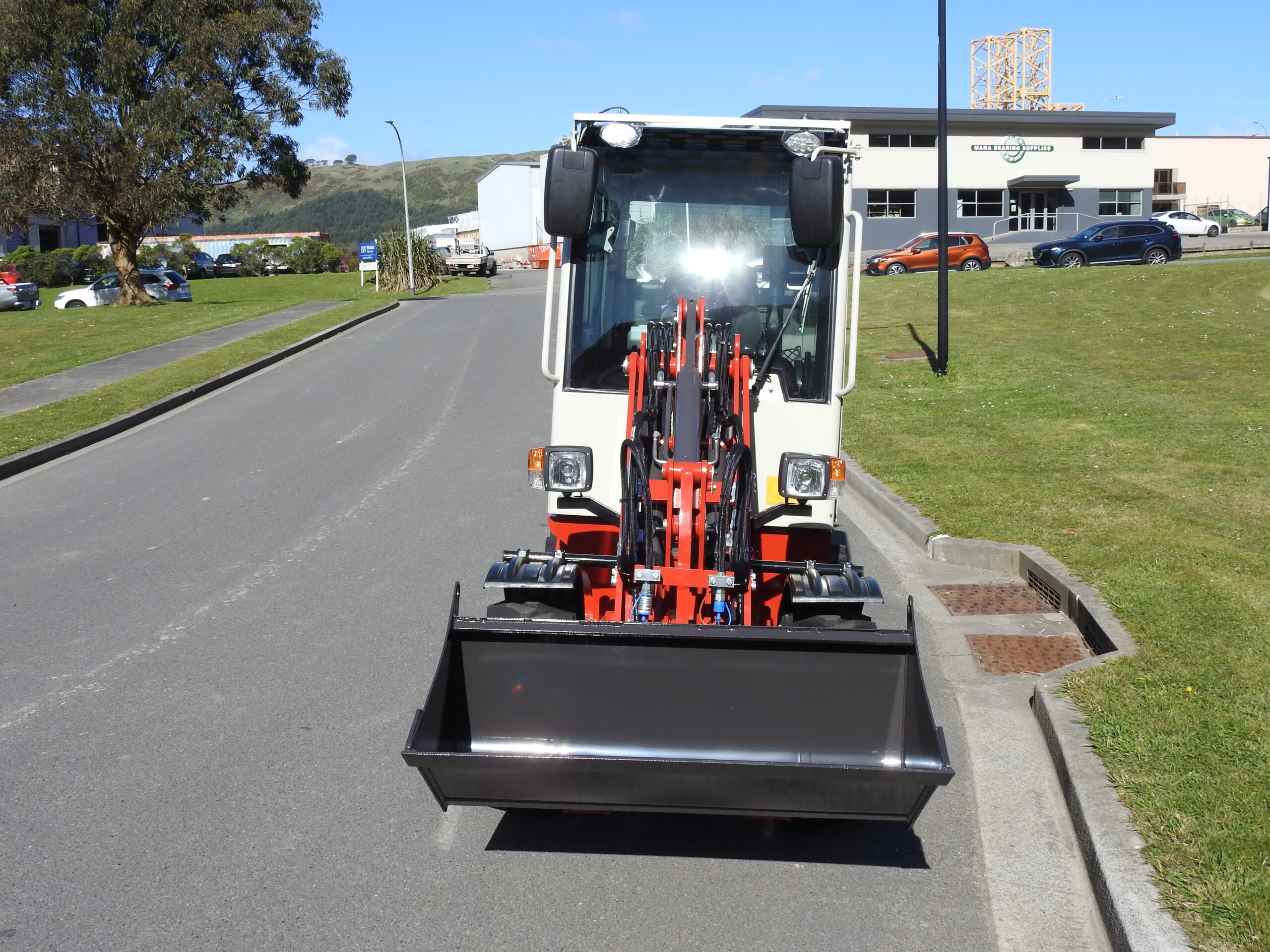

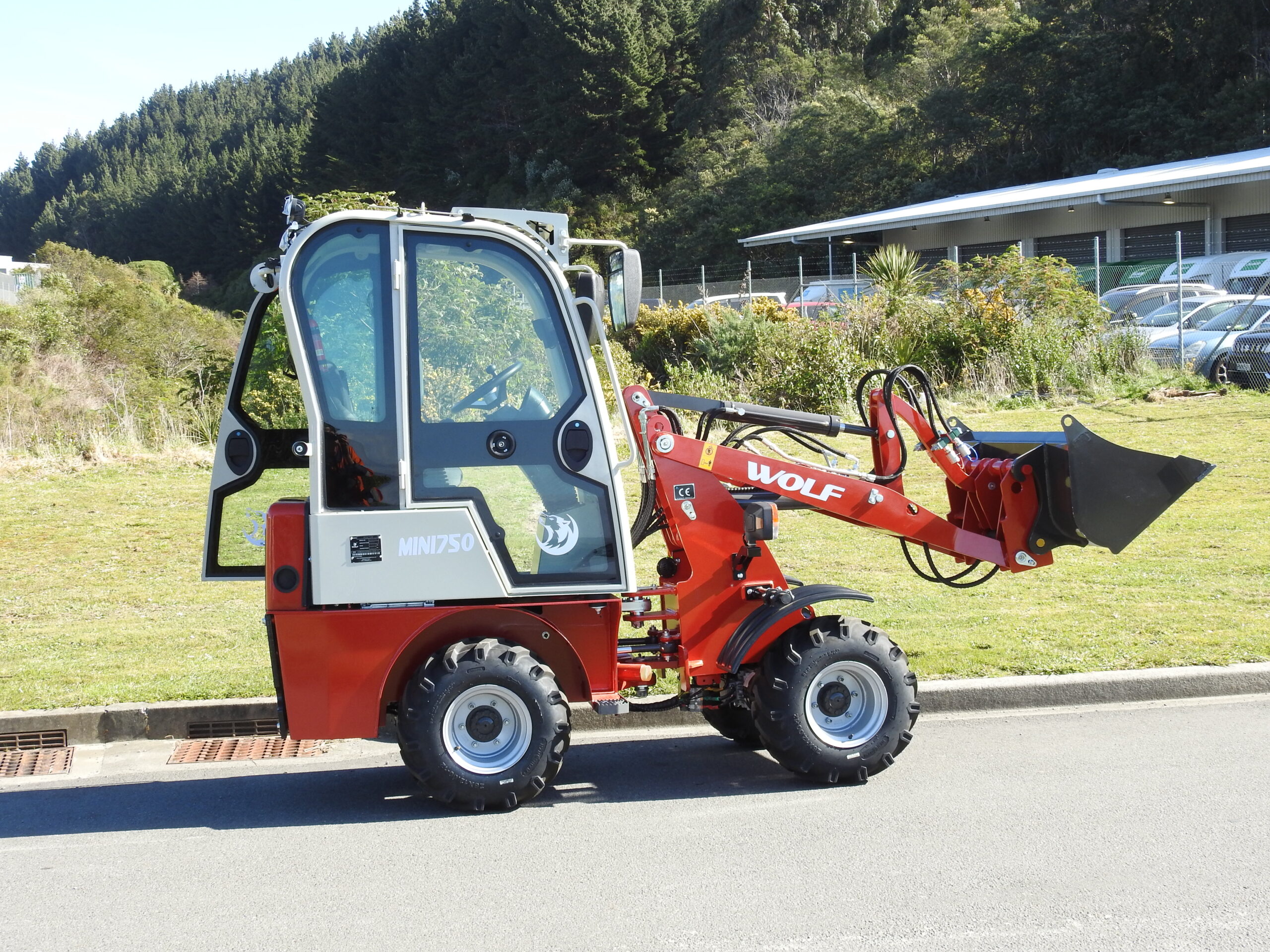

The WOLF 1750 is a newly introduced electric loader that shares the compact design of the MINI 1750, offering an eco-friendly alternative for a variety of applications.
Standard Configuration:
- Battery model 3-EVF-200A ( lithium)
- Electric joystick
- 26×12-12 tires
- PWG Italy hydraulic system
- 3-way hydraulic pipelines

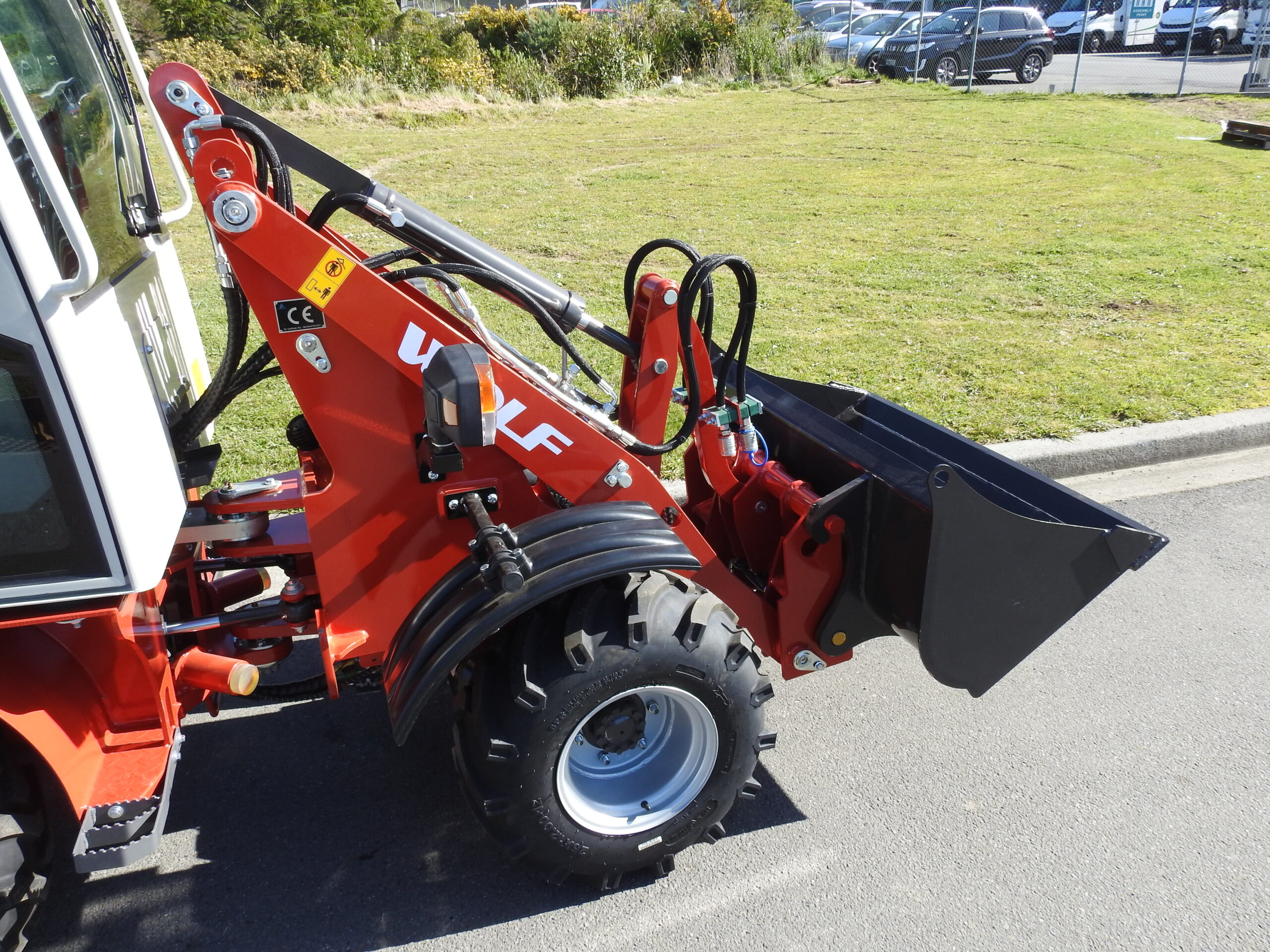

- XT linkage
- Rear trailer ball
- Bucket
| Specification | Data |
|---|---|
| Engine Model | |
| Rated Power (kW) | 18,5 |
| Rated Speed (rpm) | 2200 |
| Rated load (kg) | 600 |
| Rated Bucket Capacity (m³) | 0.2–0.4 |
| Dimensions L×W×H (mm) | 3325×1150×2360 |
| Wheel base (mm) | 1340 |
| Wheel thread (mm) | 860 |
| Max. breakout force (kN) | 43 |
| Max. dump height (mm) | 1850 |
| Dump distance (mm) | 440 |
| Total time (s) | 7,5 |
| Operating Weight (kg) | 1470 |
| Tyre | 26×12.00-12 / 27×8.5-15 |
