Description
Engine Model: Perkins 403J-11 E5 | Dimensions: 3325×1150×2360 mm | Power: 18,5 kW | Rateed load: 600 kg | Operating weight: 1 500 kg

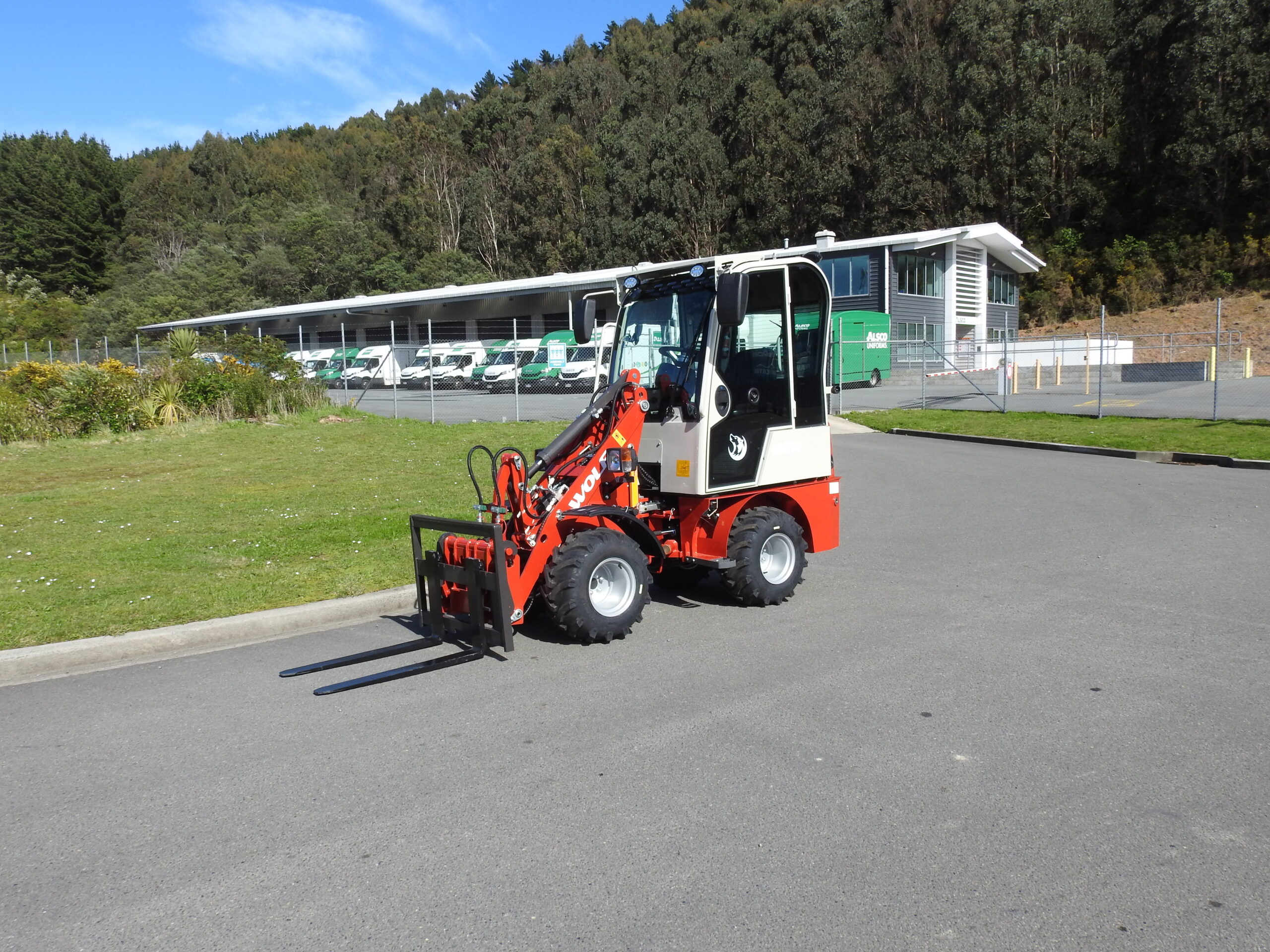

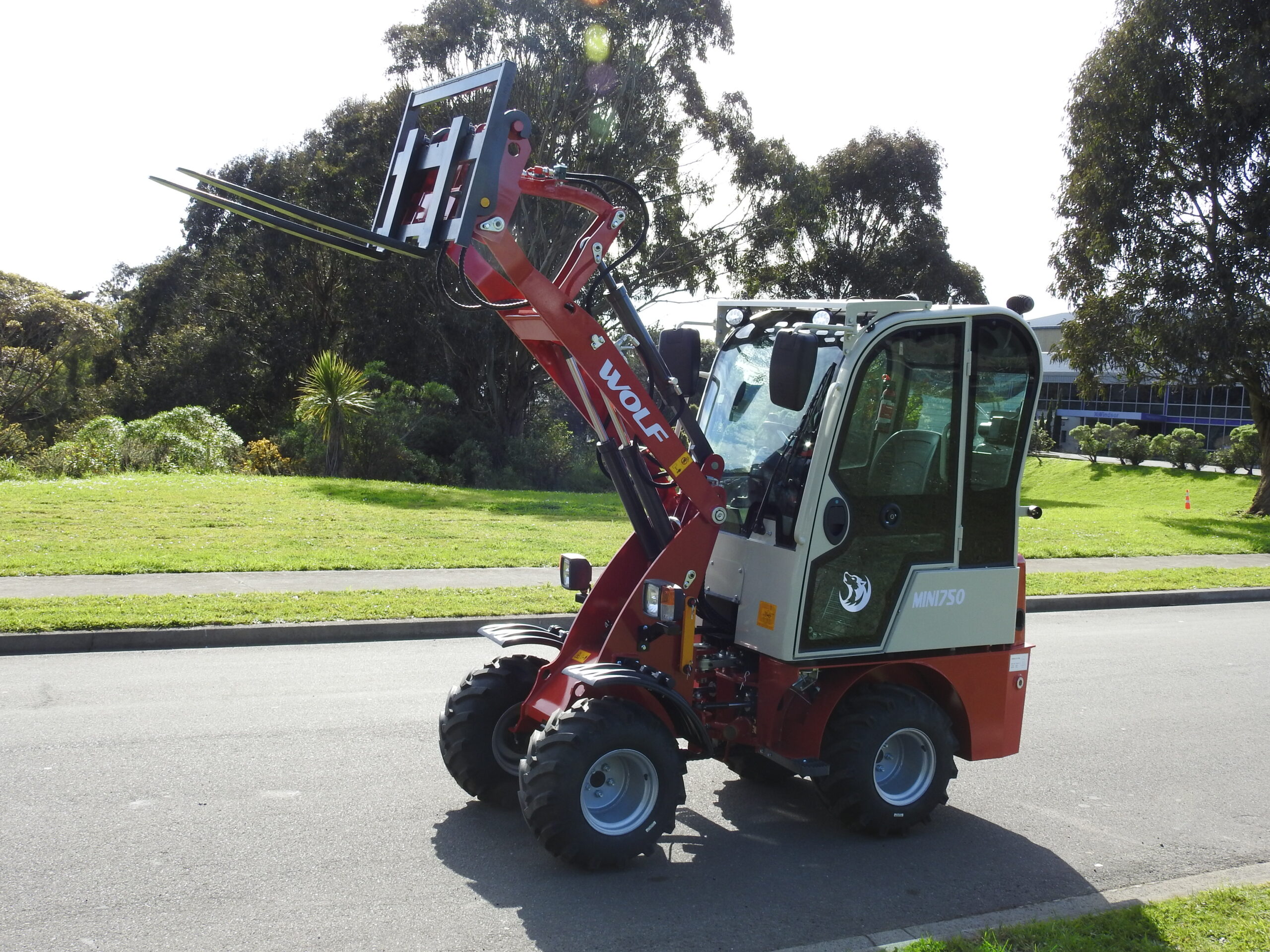

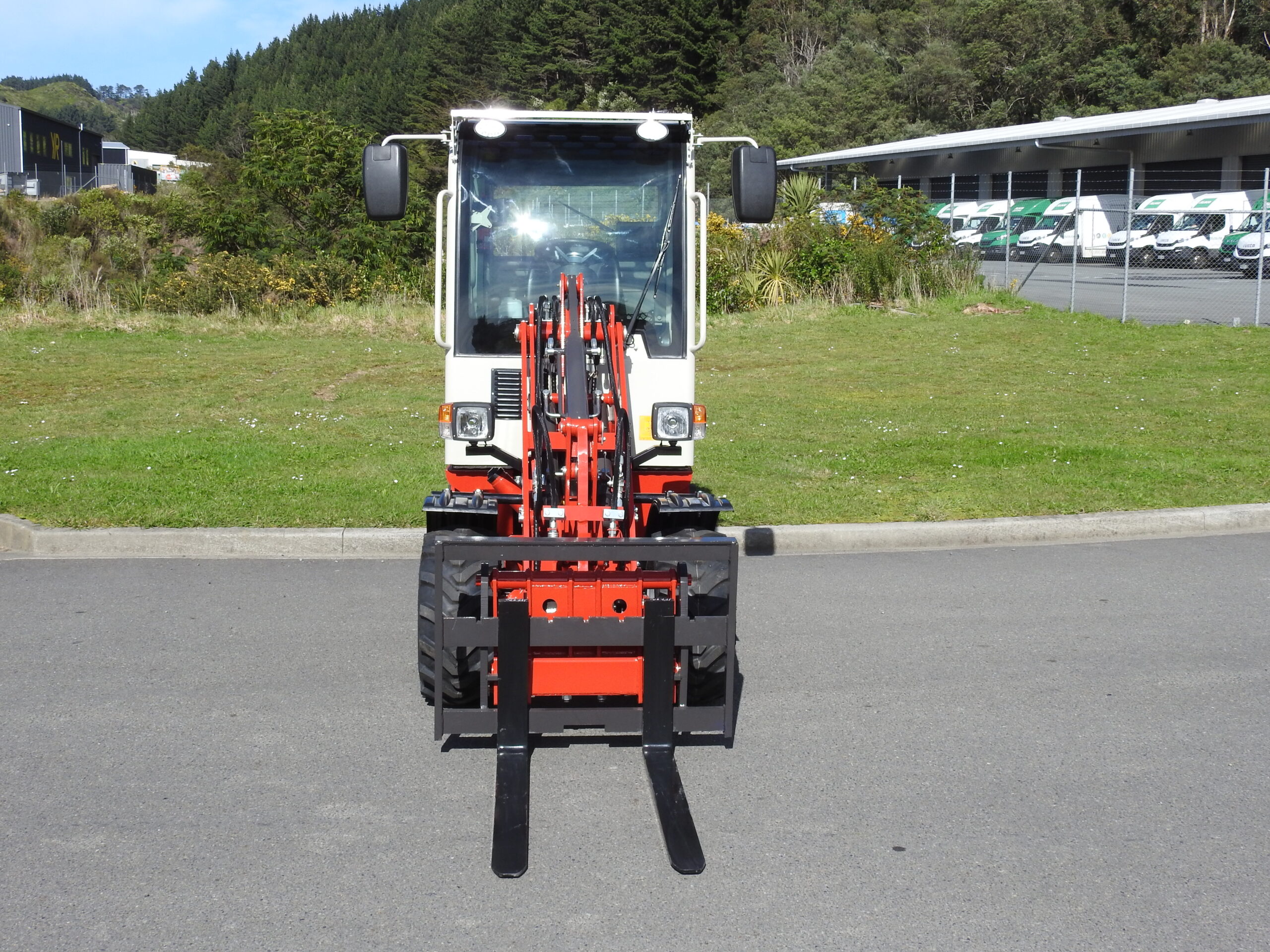

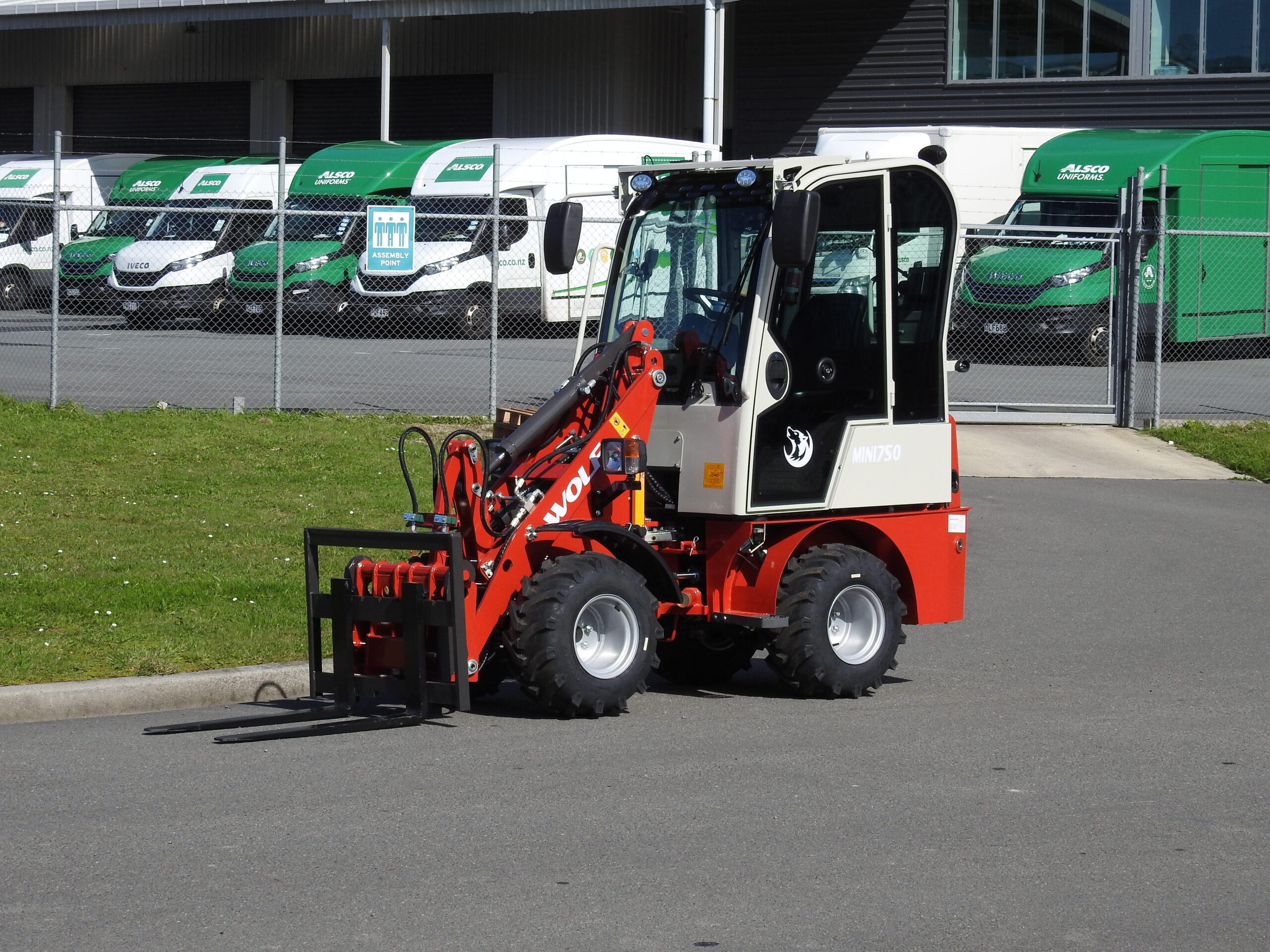

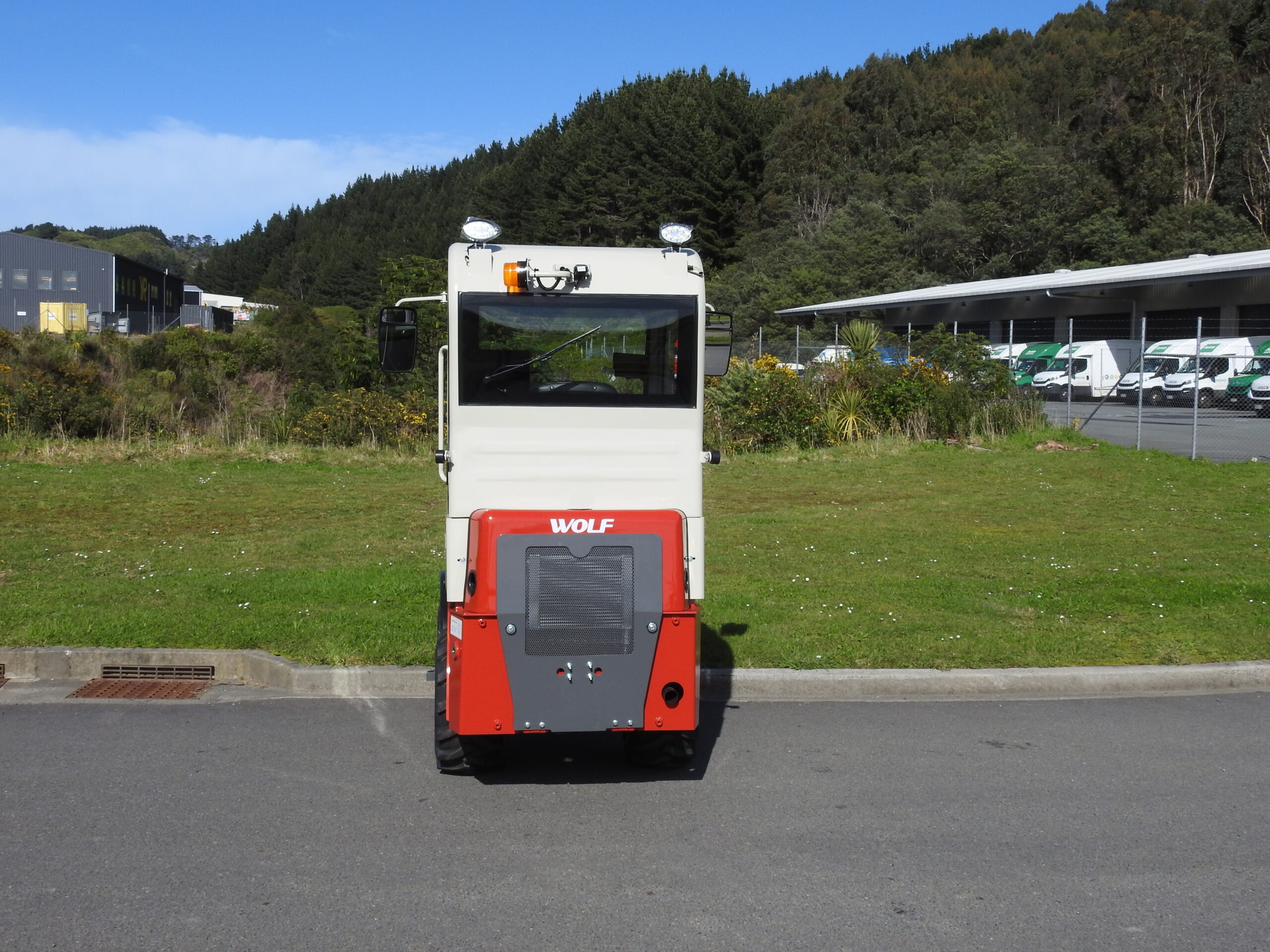

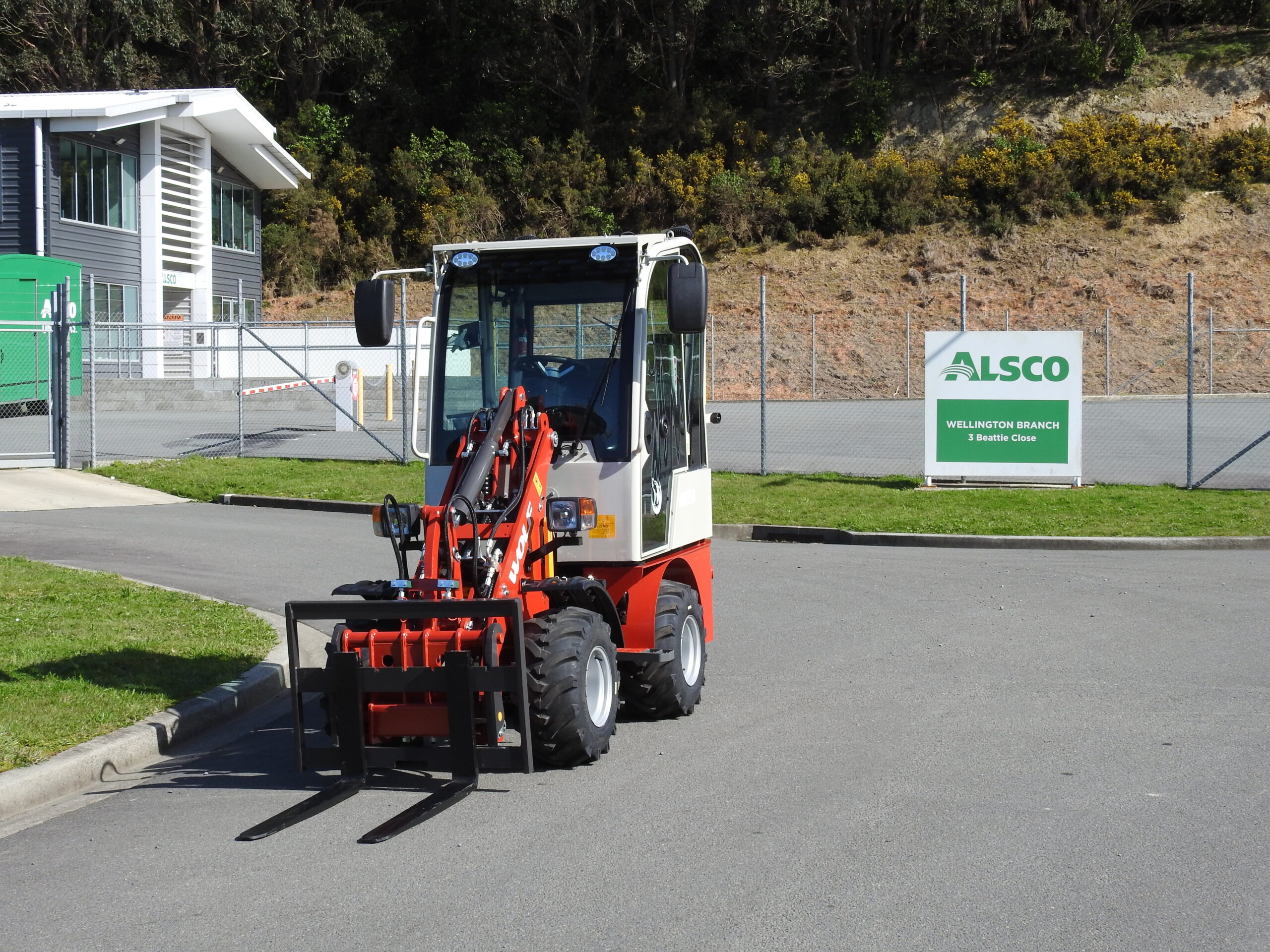

The Wolf Mini750 wheel loader is a compact yet powerful machine ideal for gardening, farming, and landscaping tasks.
Key Features:
- Compact Design: Its small size allows for easy maneuverability in tight or restricted areas.
- Versatility: Compatible with multiple attachments including buckets, forks, grapples, and more.
- High Performance: Equipped with a Perkins Euro 5 / EPA Tier 4 engine and PWG hydrostatic system, meeting the standards of European, North American, and Australian markets.

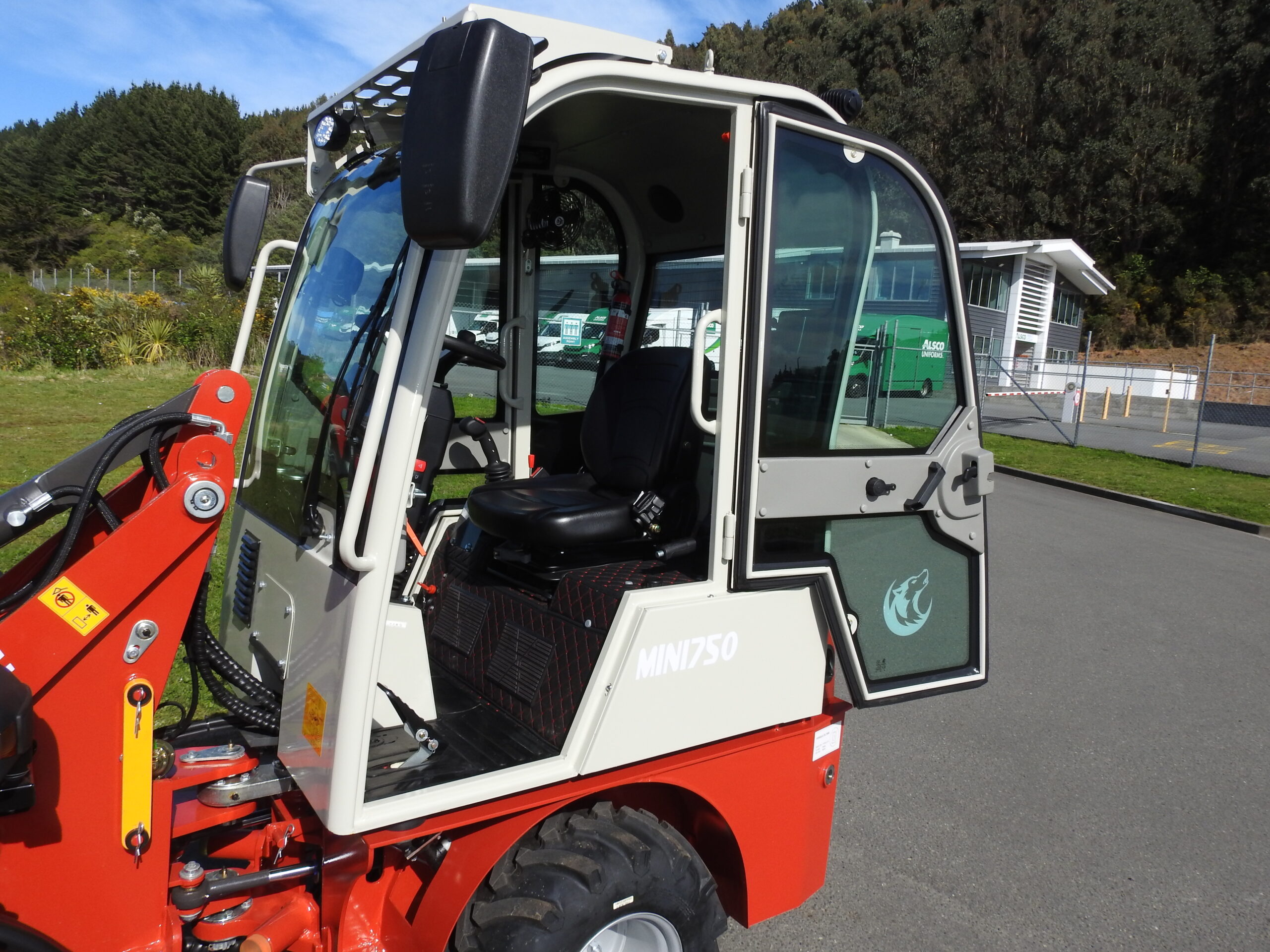

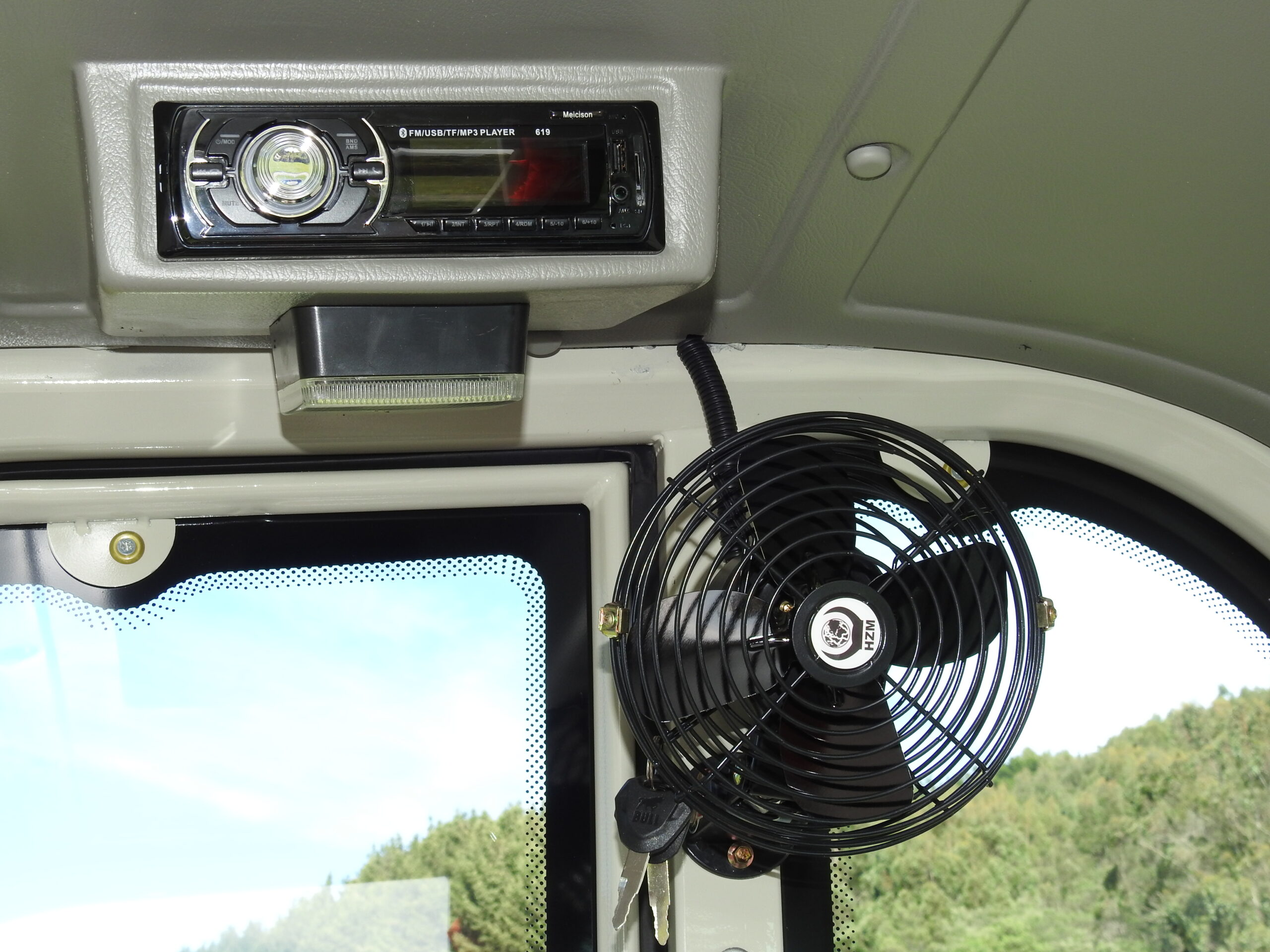

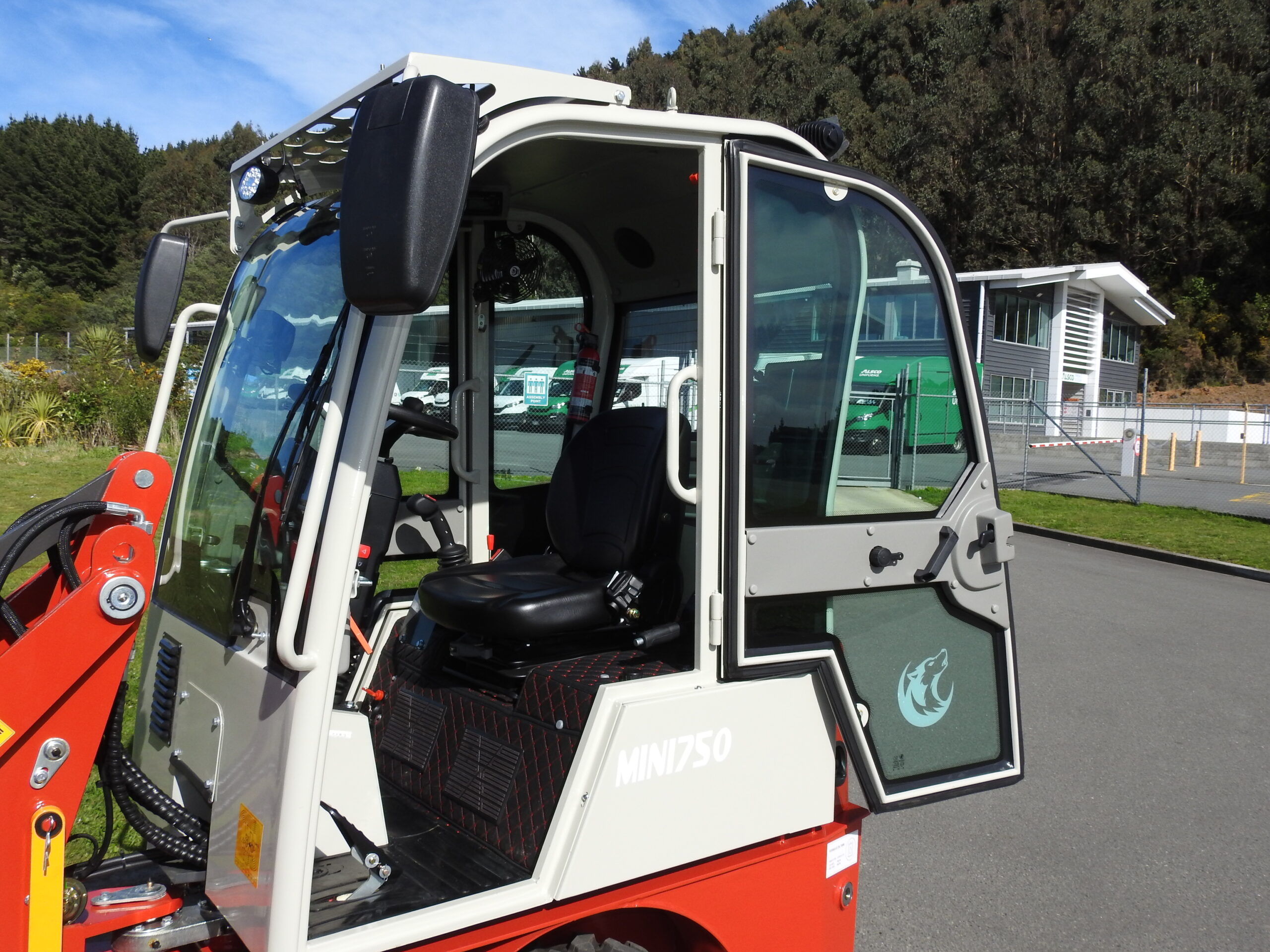

- User-Friendly Operation: Simple controls and a comfortable cab with excellent visibility make it easy to operate.
- Cost Efficiency: Lower fuel consumption and reduced maintenance compared to larger wheel loaders.
| Specification | Data |
|---|---|
| Engine Model | Perkins 403J-11 E5 |
| Rated Power (kW) | 18,4 |
| Rated Speed (rpm) | 2200 |
| Rated load (kg) | 600 |
| Rated Bucket Capacity (m³) | 0.2–0.4 |
| Dimensions L×W×H (mm) | 3325×1150×2360 |
| Wheel base (mm) | 1340 |
| Wheel thread (mm) | 940 |
| Max. breakout force (kN) | 43 |
| Max. dump height (mm) | 1850 |
| Dump distance (mm) | 550 |
| Total time (s) | 7,5 |
| Operating Weight (kg) | 1500 |
| Tyre | 26×12.00-12 / 27×8.5-15 |
dimensions
https://www.2material.com/wp-content/uploads/2025/06/MINI750-Spare-Parts-Book_compressed.pdf
certificate
https://www.2material.com/wp-content/uploads/2025/06/CE.pdf
catalog
https://www.2material.com/wp-content/uploads/2025/06/WOLF-Catalog-2025-New-1_compressed.pdf
