Description
Engine Model: CHANGCHAI 4G33 | Dimensions: 5505×1950×2720 mm | Power: 70 kW | Rated load: 1800 kg | Operating weight: 4800 kg
Standard Features:

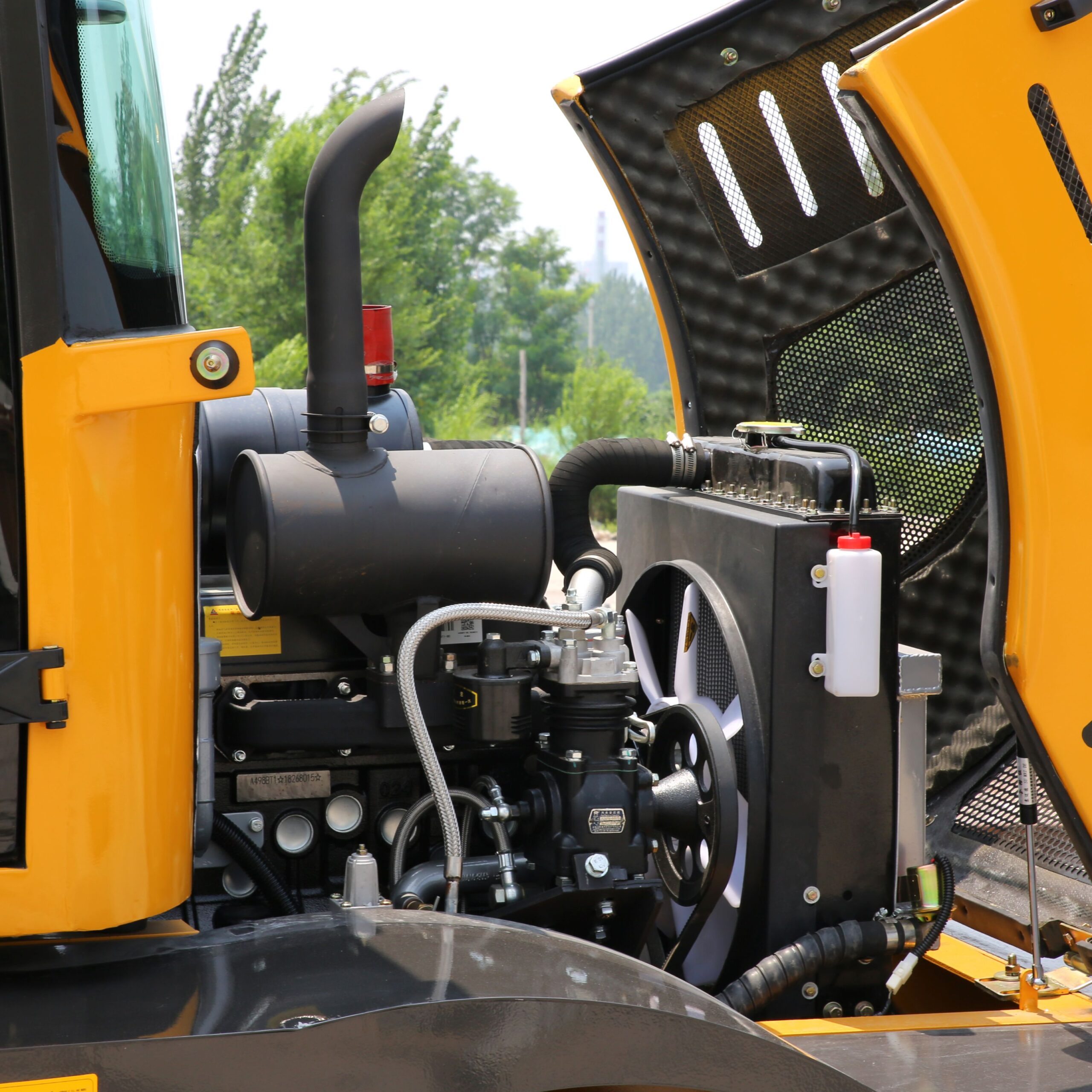

- Changchai 4G33TC engine (70 kW)
- 4WD
- 16/70-20 tires

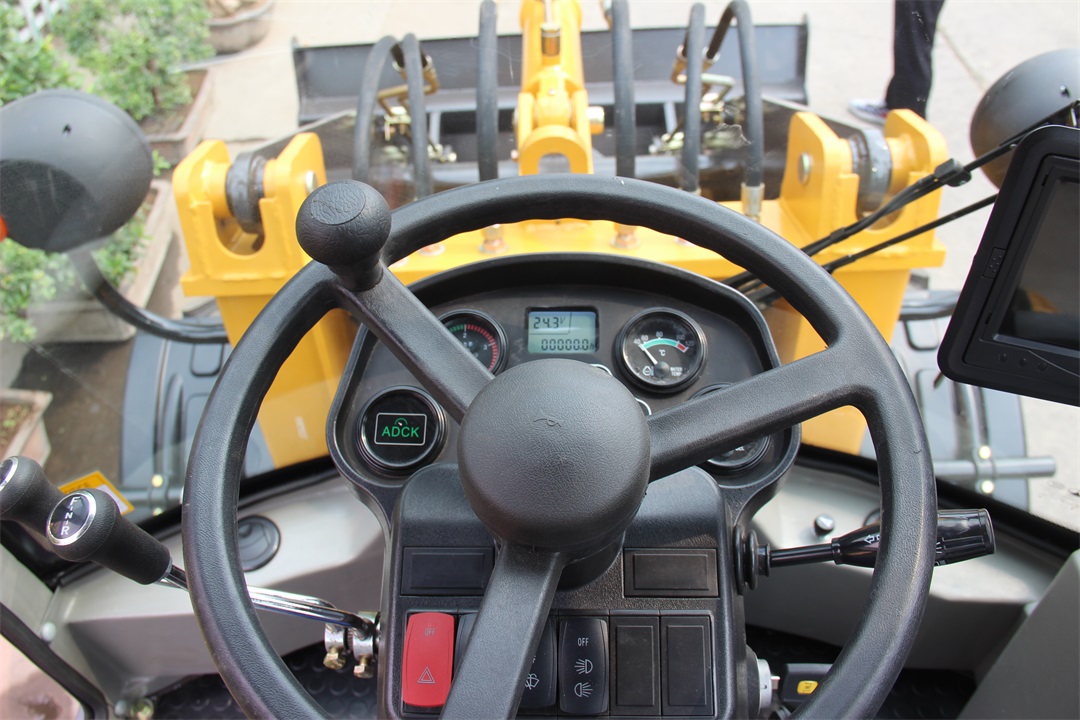

- Luxury cabin with heater
Optional Features:
- Xinchai Euro V engine
- Air conditioning

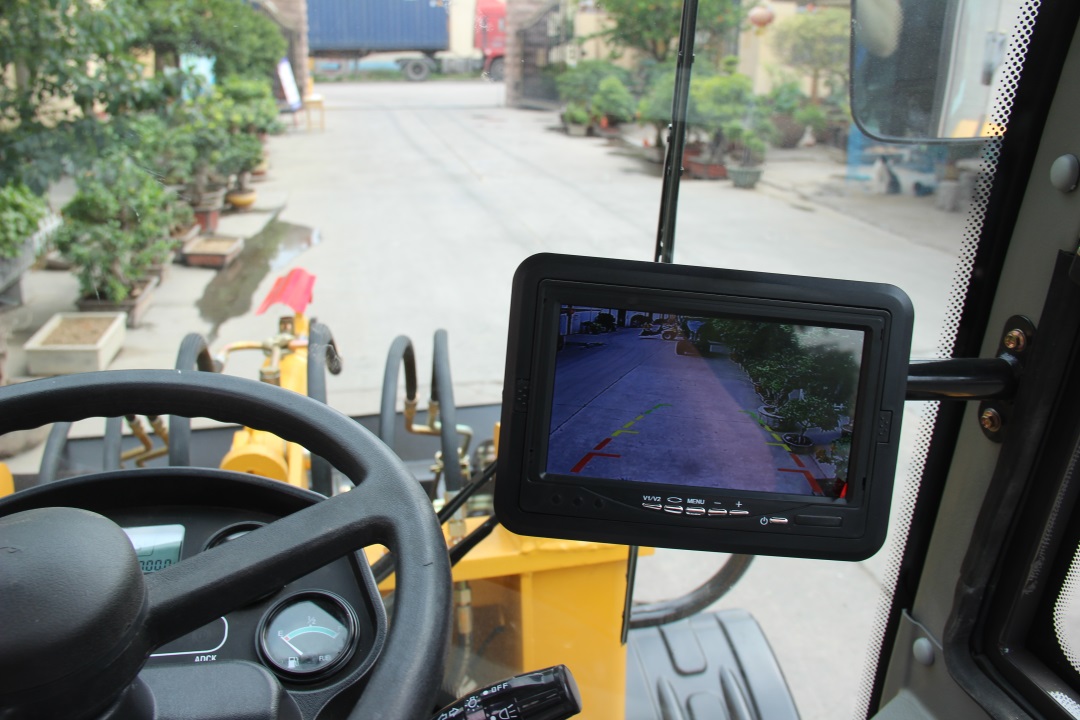

- Rearview camera
| Specification | Data |
|---|---|
| Engine Model | CHANGCHAI 4G33 |
| Rated Power (kW) | 70 |
| Rated Speed (rpm) | 2400 |
| Rated load (kg) | 1800 |
| Rated Bucket Capacity (m³) | 0.8–1.1 |
| Dimensions L×W×H (mm) | 5505×1950×2720 |
| Wheel base (mm) | 2515 |
| Wheel thread (mm) | 1490 |
| Max. breakout force (kN) | 72 |
| Max. dump height (mm) | 3300 |
| Dump distance (mm) | 470 |
| Total time (s) | 11,3 |
| Operating Weight (kg) | 4800 |
| Tyre | 23.5-16, 16/70-20 |
certificate :
https://www.2material.com/wp-content/uploads/2025/06/CE.pdf
catalog :
https://www.2material.com/wp-content/uploads/2025/06/WOLF-Catalog-2025-New-1_compressed.pdf
