Description

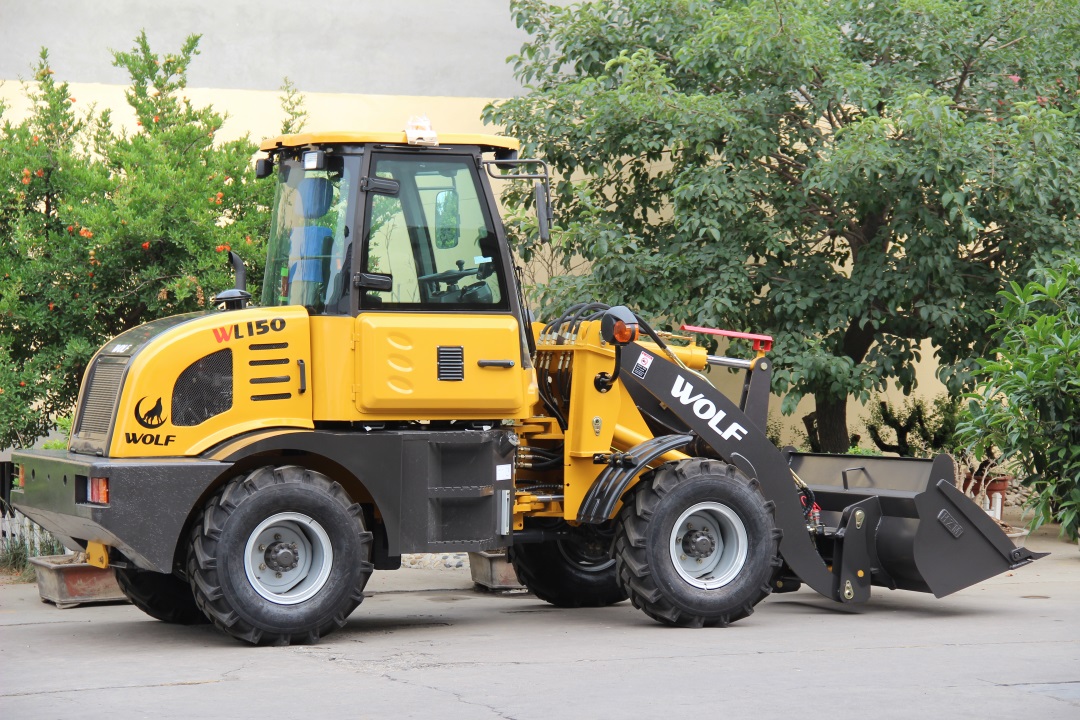

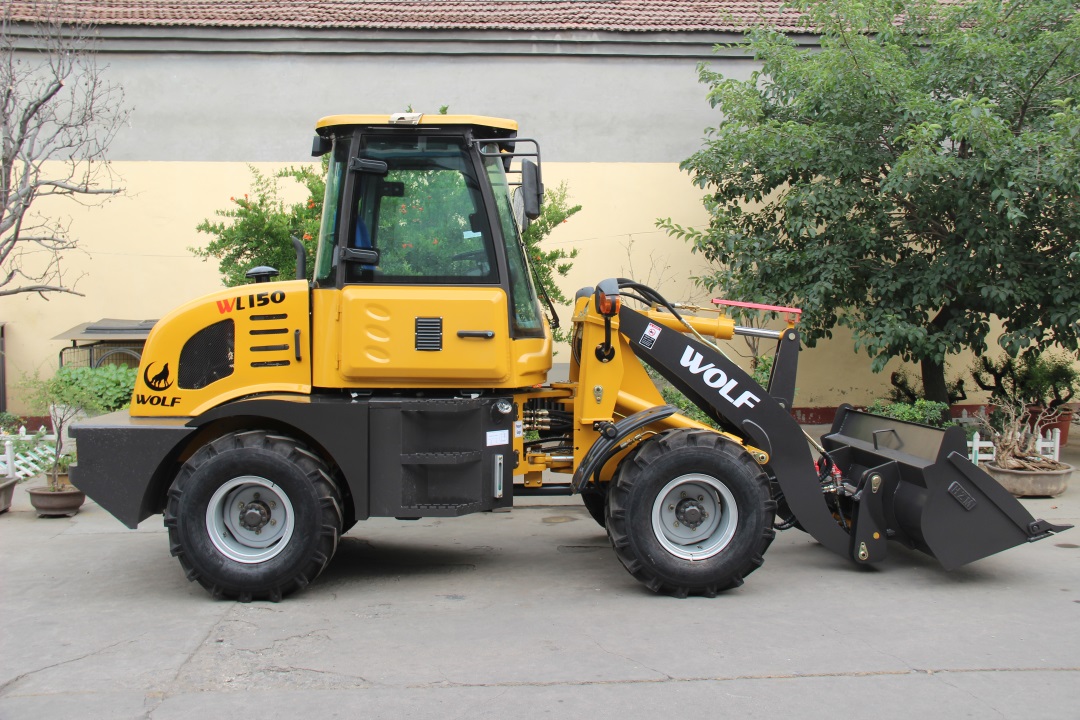

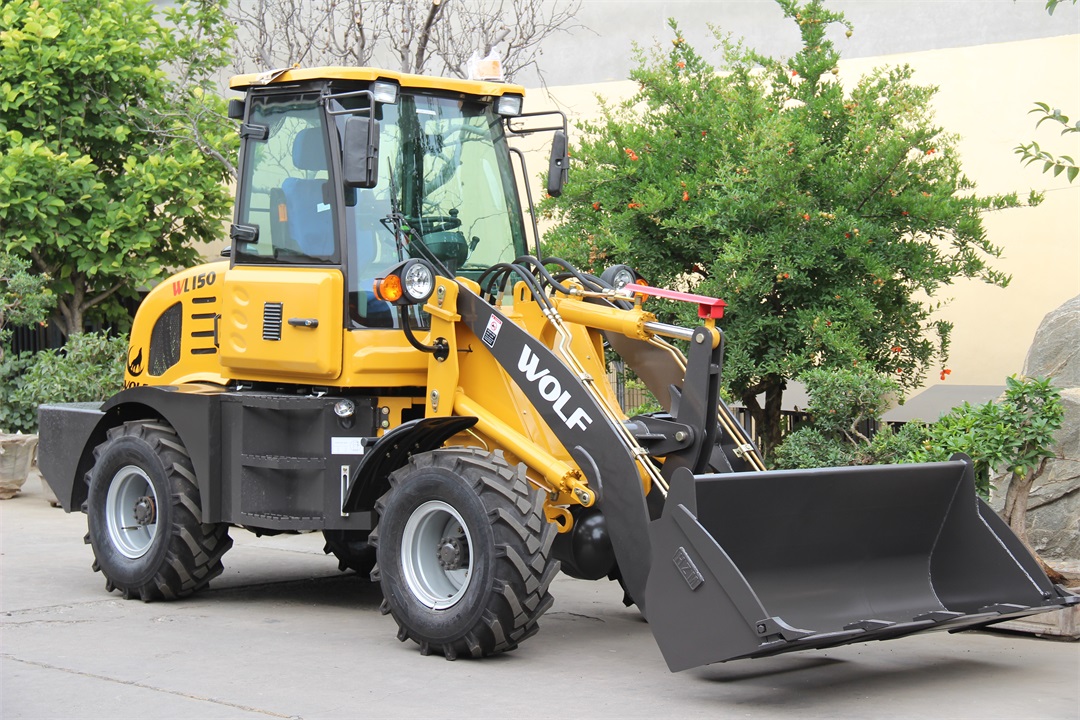

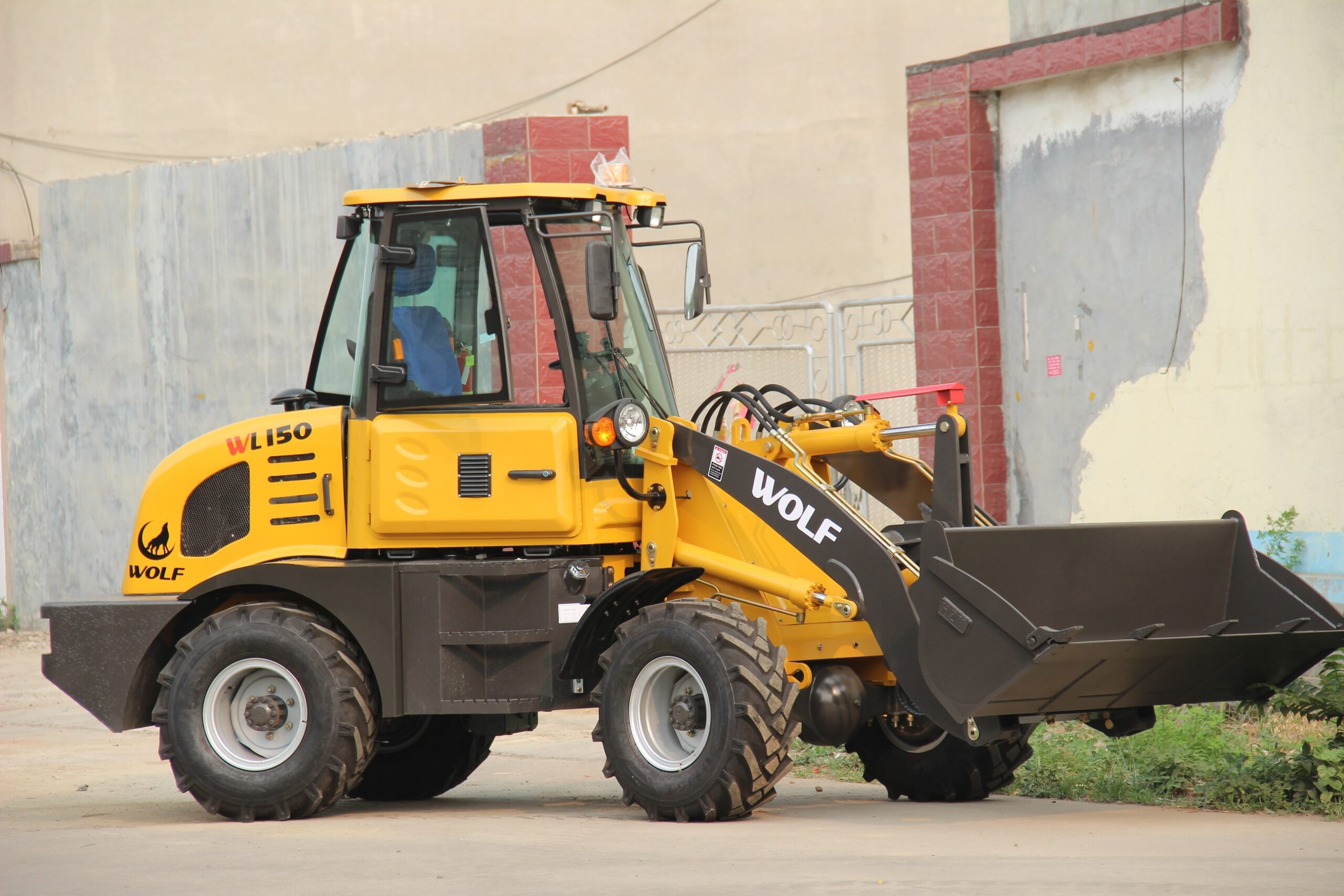

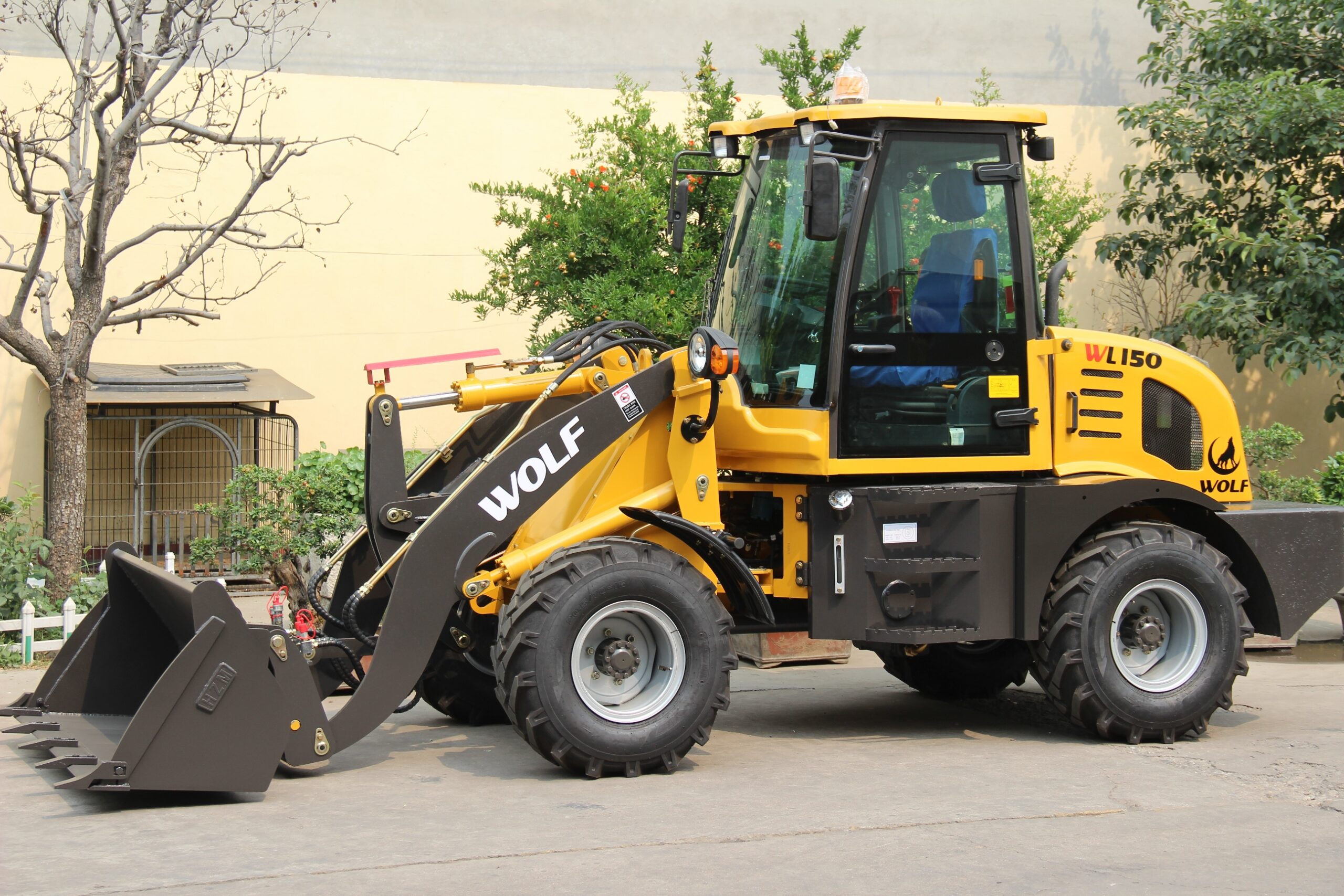

Engine Model: XINCHAI C490BPG E3 | Dimensions: 5100×1700×2580 mm | Power: 36,8 kW | Rated load: 1500 kg | Operating weight: 3600 kg
Introduction
Standard Configuration:
- Xinchai C490BPG E3 engine (36.8 kW)
- 4WD
- 20.5-16 tires

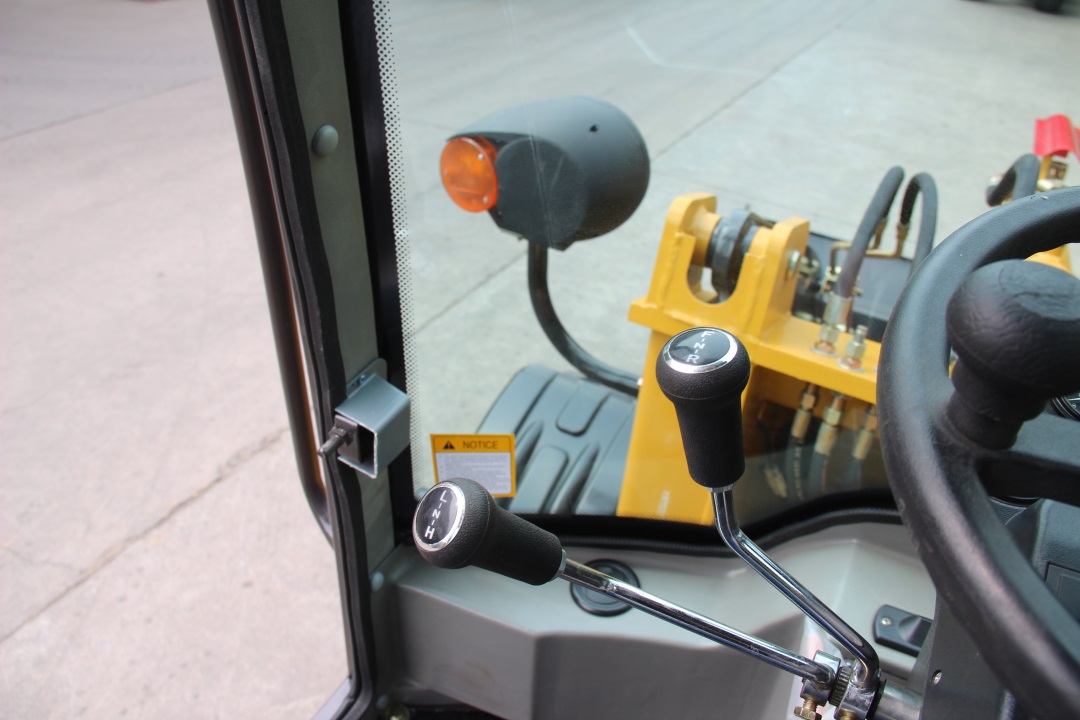

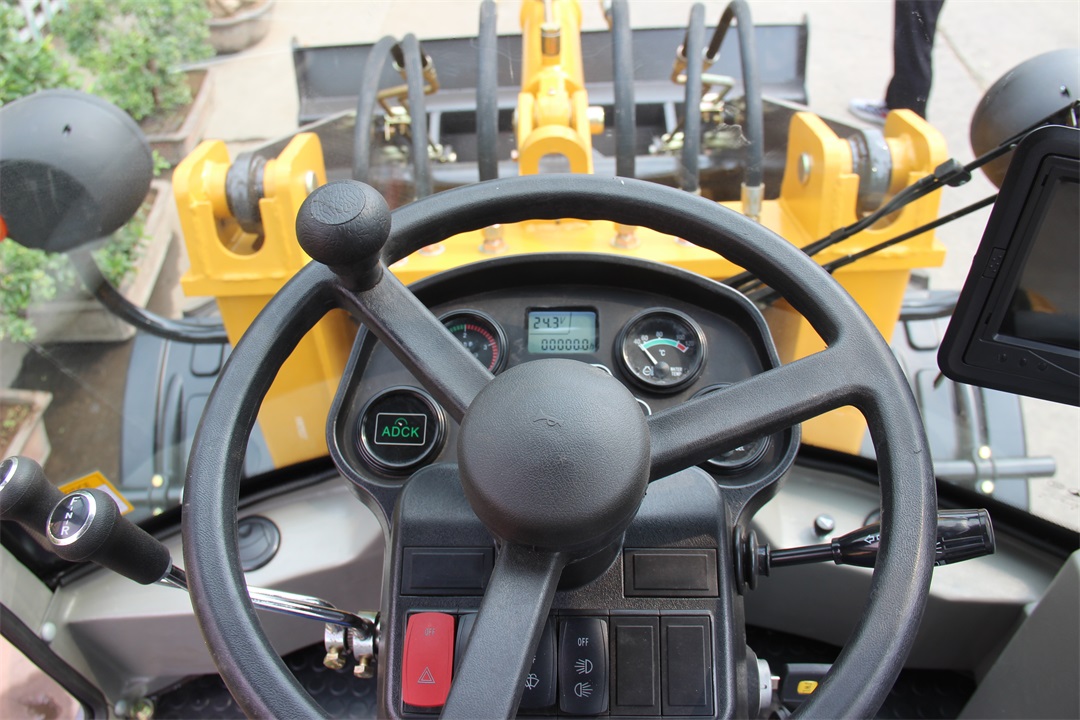

- Luxury cabin with heater
Optional Features:
- Imported Euro V or EPA Tier 4 engine
- Quick Hitch
- Air conditioning
Specification
| Specification | Data |
|---|---|
| Engine Model | XINCHAI C490BPG E3 |
| Rated Power (kW) | 36,8 |
| Rated Speed (rpm) | 2650 |
| Rated load (kg) | 1500 |
| Rated Bucket Capacity (m³) | 0.5–0.9 |
| Dimensions L×W×H (mm) | 5019×1697×2568 |
| Wheel base (mm) | 2272 |
| Wheel thread (mm) | 1391 |
| Max. breakout force (kN) | 48 |
| Max. dump height (mm) | 2452 |
| Dump distance (mm) | 1146 |
| Total time (s) | 11 |
| Operating Weight (kg) | 3600 |
| Tyre | 1200-16 / 12-16.5 / 20.5/70-16 / 23.5-16 |
