Description
Engine Model: XINCHAI A498BT1 | Dimensions: 4950×1750×2565 mm | Power: 36,8 kW | Rated load: 1600 kg | Operating weight: 3900 kg
Introduction
Standard Configuration:
- Xinchai A498BT1 Euro 3 engine
- Electronic joystick
- 20.5-16 tires
- Luxury cabin with heater
- 220V engine preheater
Optional Features:
- Xinchai Euro V or Yanmar engine
- Quick hitch system
- Air conditioning
Specification
| Specification | Data |
|---|---|
| Standard Engine | XINCHAI A498BT1 |
| Optional Engine | XICHAI / YUNNEI / CHANGCHAI / KOHLER |
| Bucket Capacity (Cbm) | 0.8–0.9 |
| Rated Load (kg) | 1600 |
| Max. Load (kg) | 1700 |
| Overall Weight (kg) | 3900 |
| Dumping Clearance (mm) | 2180 |
| Rated Power (kW) | 36,8 |
| Rated Speed (rpm) | 2400 |
| Wheel Base (mm) | 2273 |
| Tread (mm) | 2280 |
| Dimensions L×W×H (mm) | 4936×1729×2563 |
| Standard Tire | 20.5/70-16 |
| Option Tire | 33×16.5-15 |
| Max. Driving Speed (km/h) | 18–28 |

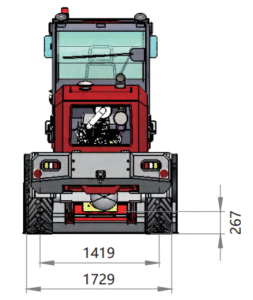

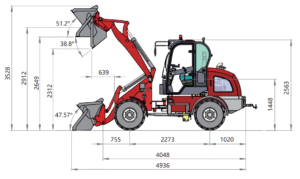

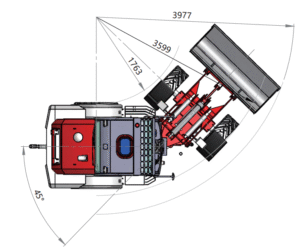

Dimension drawings
certificate
https://www.2material.com/wp-content/uploads/2025/06/CE.pdf
catalog
https://www.2material.com/wp-content/uploads/2025/06/WOLF-Catalog-2025-New-1_compressed.pdf
